Installation [10/2018 - 07/2022]: Procedure

1. When reusing the vacuum pump assembly:

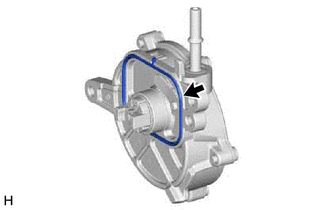

   1. Install a new No. 1 vacuum pump O-ring to the vacuum pump assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

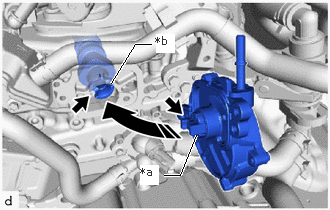

2. Install the vacuum pump assembly so that the coupling teeth of the vacuum pump assembly and groove of the camshaft are engaged.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Coupling Teeth
   *b	Groove

   NOTE:

   • Ensure that the vacuum pump assembly is installed securely.
   • Be careful not to pinch the No. 1 vacuum pump O-ring.
3. Using an 8 mm socket wrench, install the vacuum pump assembly with the 3 bolts.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

   NOTE:

   After installation, check that there are no gaps between the matching surfaces and that the vacuum pump assembly is not installed at an angle.

1. Install the engine wire with the bolt and 2 nuts.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

2. Connect the 3 connectors.
3. Engage the 3 clamps to install the engine wire.
4. Connect the 7 connectors.
5. Install the engine wire with the 3 bolts.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

6. Engage the clamp to install the engine wire.
7. Connect the 4 connectors.

1. Align the No. 1 vacuum hose connector with the vacuum pump assembly, and push them together until the No. 1 vacuum hose connector makes a "click" sound.
   NOTE:

   • Check that there is no foreign matter on the connecting parts.
   • After connecting the No. 1 vacuum hose connector, check that the vacuum pump assembly and No. 1 vacuum hose connector are securely connected by pulling on them.

Refer to INSTALLATION [10/2018 - 07/2022]

Refer to ON-VEHICLE INSPECTION [10/2018 - 07/2022]
