Removal [10/2018 - 08/2021]: Procedure

  1. REMOVE DOOR PULL HANDLE

    See step  7 [10/2018 - 08/2021]

  2. REMOVE DOOR CONTROL SWITCH

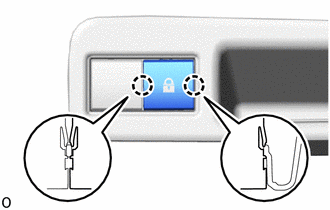

    1. Disengage the claws to remove the door control switch.
      GTY810982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
