Reassembly [10/2018 - 07/2022]: Procedure

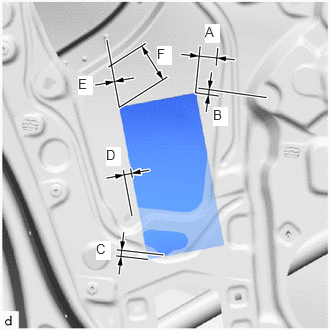

  1. INSTALL REAR DOOR OUTSIDE PANEL REINFORCEMENT LINING
    1. Clean the rear door panel.
    2. Remove the release paper from a new rear door outside panel reinforcement lining.
    3. Install the rear door outside panel reinforcement lining as shown in the illustration.
      GTY782210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Measurement

      Area Measurement
      A 23.1 mm (0.909 in.)
      B 3.8 mm (0.150 in.)
      C 7.3 mm (0.287 in.)
      D 8.3 mm (0.327 in.)
      E 0 mm (0 in.)
      F 50.7 mm (2.00 in.)
  2. INSTALL HOLE PLUG
    1. Install the 3 hole plugs.
      GTY807586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR DOOR WINDOW FRAME MOULDING SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. INSTALL NO. 3 REAR DOOR WEATHERSTRIP
    1. Clean the rear door panel.
    2. Remove the release paper from a new No. 3 rear door weatherstrip.
    3. Install the No. 3 rear door weatherstrip.
      GTY807034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape
    4. Press the double-sided tape area of the No. 3 rear door weatherstrip.
  5. INSTALL REAR DOOR FRONT OUTSIDE SEAL
    1. Install the rear door front outside seal.
      GTY835824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL REAR DOOR FRONT WINDOW FRAME MOULDING

    Refer to PROCEDURE - Step 2

  7. INSTALL REAR DOOR BELT MOULDING ASSEMBLY

    Refer to PROCEDURE - Step 1

  8. INSTALL NO. 5 REAR DOOR WEATHERSTRIP
    1. Clean the rear door panel.
    2. Remove the release paper from a new No. 5 rear door weatherstrip.
    3. Engage the clip to install the No. 5 rear door weatherstrip.
      GTY789538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape
    4. Press the double-sided tape area of the No. 5 rear door weatherstrip.
  9. INSTALL REAR DOOR DUST PROOF SEAL
    1. Install the 3 rear door dust proof seals.
      GTY807587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL REAR DOOR OUTSIDE MOULDING SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  11. INSTALL REAR DOOR PANEL CUSHION
    1. Install the rear door panel cushion.
      GTY807588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL NO. 2 REAR DOOR WEATHERSTRIP
    1. Clean the rear door panel.
    2. Remove the release paper from a new No. 2 rear door weatherstrip.
    3. Engage the clips to install the No. 2 rear door weatherstrip.
      GTY815983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape
    4. Press the double-sided tape area of the No. 2 rear door weatherstrip.
  13. INSTALL REAR DOOR WEATHERSTRIP
    1. Clean the rear door panel.
    2. Remove the release paper from a new rear door weatherstrip.
    3. Engage the clips to install the rear door weatherstrip.
      GTY799077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape
    4. Press the double-sided tape area of the rear door weatherstrip.
  14. INSTALL REAR DOOR CHECK ASSEMBLY
    1. Clean the bolt hole in the vehicle body.
    2. When reusing a bolt:
      1. Clean the threads of the bolt with non-residue solvent.
      2. Apply adhesive to the threads of the bolt.

        Adhesive

        Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent.

    3. Install the rear door check assembly to the door panel with the 2 nuts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      GTY807590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the rear door check assembly to the body panel with the bolt.

      Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

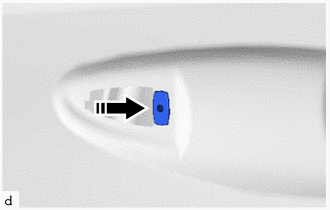

  15. INSTALL REAR DOOR HANDLE NUT
    1. Install the rear door handle nut as shown in the illustration.
      GTY785799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  16. INSTALL REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY
    1. Using a T30 "TORX" socket wrench, install the screw and front door outside handle frame sub-assembly.
      GTY807553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

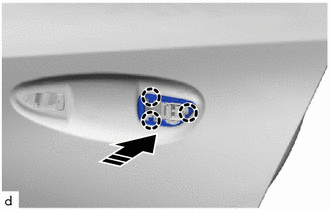

  17. INSTALL REAR DOOR REAR OUTSIDE HANDLE PAD
    1. Engage the claws to install the rear door rear outside handle pad as shown in the illustration.
      GTY831944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

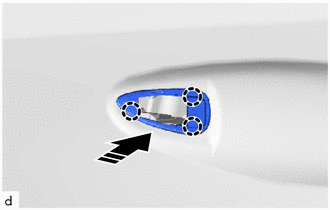

  18. INSTALL REAR DOOR FRONT OUTSIDE HANDLE PAD
    1. Engage the claws to install the rear door front outside handle pad as shown in the illustration.
      GTY777742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

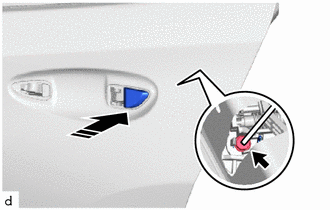

  19. INSTALL REAR DOOR OUTSIDE HANDLE COVER
    GTY836228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Install in this Direction
    1. Using a T30 "TORX" socket wrench, install the rear door outside handle cover with the screw as shown in the illustration.

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

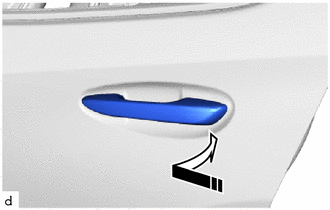

  20. INSTALL REAR DOOR OUTSIDE HANDLE ASSEMBLY
    1. Install the rear door outside handle assembly as shown in the illustration.
      GTY800047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

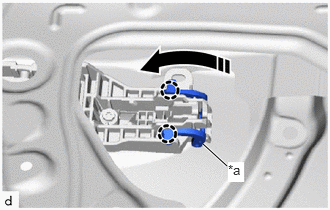

    2. Engage the claws to install the holder as shown in the illustration.
      GTY792896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Holder
      Install in this Direction
  21. INSTALL REAR DOOR LOCK COVER SUB-ASSEMBLY
    1. Install the rear door lock cover sub-assembly.
      GTY834383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL REAR DOOR LOCK CHILD PROTECTION COVER
    1. Install the rear door lock child protection cover.
      GTY807564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL REAR DOOR LOCK WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 5

  24. INSTALL REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY
    1. Temporarily install the rear door window regulator sub-assembly with the 6 nuts.
      NOTE:

      Be careful not to drop the rear door window regulator as it may become damaged.

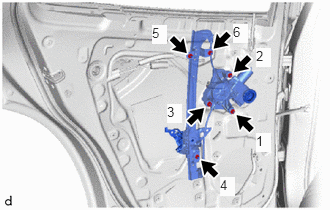

      Fig 1: Rear Door Window Regulator Sub-assembly Nut Tightening Sequence
      GTY823305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the temporary 6 nuts to install the rear door window regulator sub-assembly.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      HINT:

      Tighten the bolts in the order shown in the illustration.

  25. INSTALL REAR DOOR GLASS SUB-ASSEMBLY
    1. Connect the power window regulator switch assembly with rear door armrest upper base panel.
    2. Connect the cable to the auxiliary battery negative (-) terminal.
    3. Move the rear door window regulator so that the rear door glass bolt hole can be seen.
    4. Disconnect the cable from the auxiliary battery negative (-) terminal.
    5. Disconnect the power window regulator switch assembly with rear door armrest upper base panel.

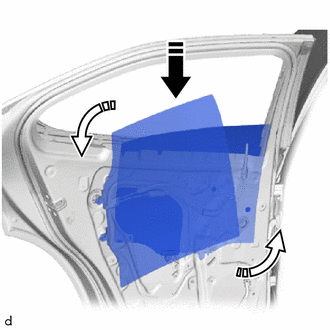

    6. Insert the rear door glass sub-assembly as shown in the illustration.
      NOTE:

      Do not damage the rear door glass sub-assembly.

      GTY810021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
    7. Install the rear door glass sub-assembly to the rear door window regulator sub-assembly with the 2 bolts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      GTY834376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Install the hole plug.
      GTY807621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL REAR DOOR QUARTER WINDOW WEATHERSTRIP
    1. Install the rear door quarter window weatherstrip.
      GTY807561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

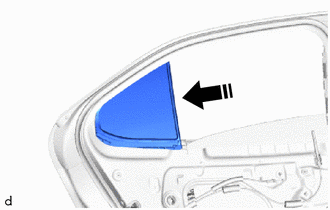

  27. INSTALL REAR DOOR QUARTER WINDOW GLASS
    1. Install the rear door quarter window glass with rear door quarter window weatherstrip as shown in the illustration.
      GTY776424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

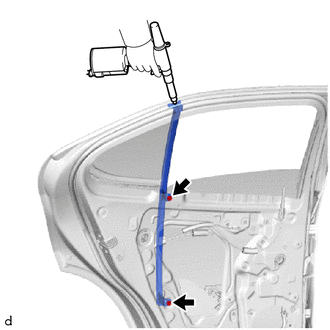

  28. INSTALL REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY
    1. Temporarily install the rear door window division bar sub-assembly with the 2 bolts.
      GTY834406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a riveter with a nose piece, install the rear door window division bar sub-assembly.
      NOTE:
      • Do not pry the front door front lower frame sub-assembly with the riveter, as this will cause damage to the riveter and mandrel.
        GTY811440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Riveter
        *b Mandrel
        *c Incorrect
        GTY477700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Riveter
        *b Incorrect
      • Confirm that the front door front lower frame sub-assembly are seated properly against the vehicle body.
      • Do not tilt the riveter when installing the front door front lower frame sub-assembly to the front door.

      HINT:

      If the mandrel of the front door front lower frame sub-assembly does not come off on the first operation of the rivet gun, slide the rivet gun forward on the mandrel and operate it again.

    3. Tighten the temporary 2 bolts to install the rear door window division bar sub-assembly.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

  29. INSTALL REAR DOOR GLASS RUN
    1. Install the rear door glass run.
      GTY807624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

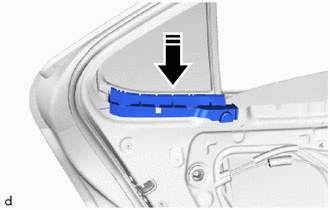

  30. INSTALL NO. 2 REAR DOOR VENT SEAL
    1. Install the No. 2 rear door vent seal as shown in the illustration.
      GTY785730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

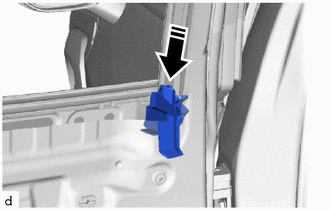

  31. INSTALL NO. 2 REAR DOOR SERVICE HOLE COVER
    1. Install the No. 2 rear door panel service hole cover as shown in the illustration.
      GTY838254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

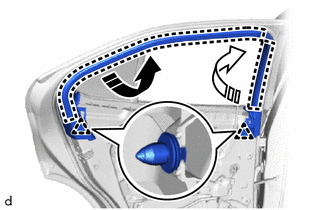

  32. INSTALL REAR DOOR FRAME GARNISH
    1. Engage the guides and clips to install the rear door frame garnish as shown in the illustration.
      GTY835035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)

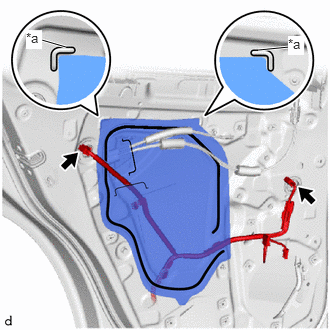

  33. INSTALL REAR DOOR SERVICE HOLE COVER
    1. Apply new butyl tape to the rear door panel.
    2. Pass the each cable through a new rear door service hole cover.
    3. Install the front door service hole cover according to the reference points on the rear door panel.
      GTY826051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Reference Point
      Butyl Tape
      NOTE:

      Securely install the rear door service hole cover preventing wrinkles and air bubbles.

    4. Connect the 2 connectors.
  34. INSTALL NO. 3 REAR DOOR SERVICE HOLE COVER
    1. Install the 4 screws and No. 3 rear door service hole cover.
      GTY806885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL REAR SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 1

  36. INSTALL REAR DOOR TRIM BRACKET
    1. Install the 2 screws and rear door trim bracket.
      GTY806889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

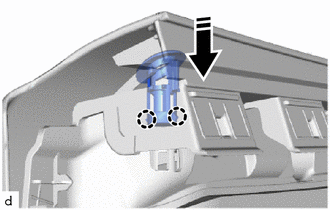

  37. INSTALL REAR DOOR LOCK CONTROL KNOB BEZEL
    1. Engage the claws to install the rear door lock control knob bezel as shown in the illustration.
      GTY797002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

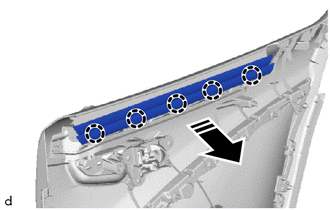

  38. INSTALL REAR DOOR INNER GLASS WEATHERSTRIP
    1. Engage the claws to install the rear door inner glass weatherstrip as shown in the illustration.
      GTY800519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  39. INSTALL REAR DOOR INSIDE HANDLE BEZEL

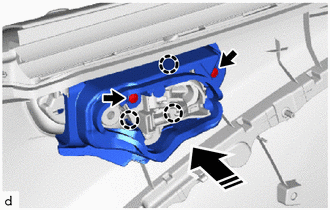

    1. Engage the claws to install the rear door inside handle bezel as shown in the illustration.
      GTY827309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the screws.
  40. INSTALL REAR DOOR INSIDE HANDLE SUB-ASSEMBLY
    1. Engage the guide and claw.
      GTY806806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the rear door inside handle sub-assembly with the 3 screws.

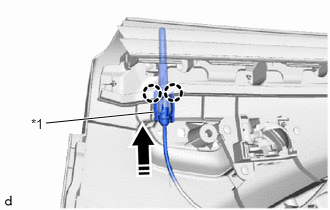

  41. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY
    1. Engage the claws to connect the rear door inside locking cable assembly as shown in the illustration.
      GTY809096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Door Inside Locking Cable Assembly
      Install in this Direction

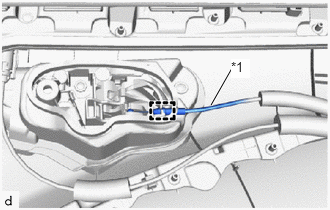

    2. Engage the guide to connect the rear door lock remote control cable assembly to the rear door trim board sub- assembly.
      GTY799273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Door Lock Remote Control Cable Assembly
    3. Engage the guide.

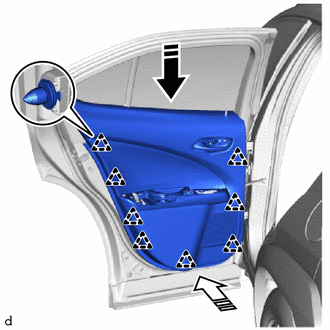

    4. Engage the clips to install the rear door trim board sub-assembly as shown in the illustration.
      GTY779965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
    5. Install the 3 screws.
      GTY834190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE UPPER PANEL

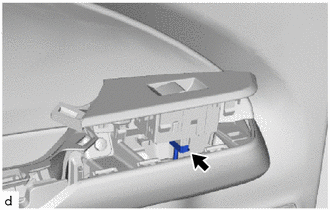

    1. Connect the connector.
      GTY806707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

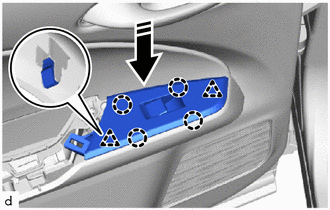

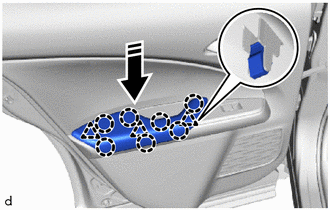

    2. Engage the clips and claws to install the power window regulator switch assembly with rear door armrest base upper panel as shown in the illustration.
      GTY823617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  43. INSTALL REAR ARMREST ASSEMBLY
    1. Engage the retainer.
      GTY793492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the clips and claws to install the rear armrest assembly as shown in the illustration.
      GTY777924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  44. INSTALL REAR DOOR TRIM COVER

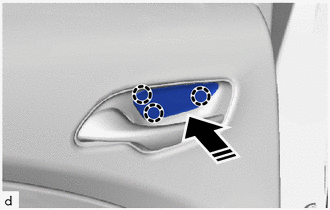

    1. Engage the claws to install the rear door trim cover as shown in the illustration.
      GTY806672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. INSTALL REAR DOOR ARMREST COVER

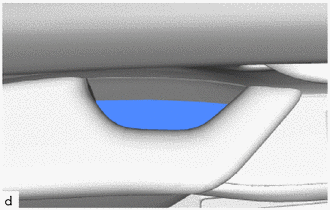

    1. Install the rear door armrest cover.
      GTY806576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2018 - 07/2022]

  47. INITIALIZE POWER WINDOW CONTROL SYSTEM

    Refer to INITIALIZATION [10/2018 - ]

  48. CHECK POWER WINDOW CONTROL SYSTEM

    Refer to OPERATION CHECK [10/2018 - ]

  49. CHECK POWER DOOR LOCK CONTROL SYSTEM

    Refer to OPERATION CHECK [10/2018 - 07/2022]

scientia non olet · About LEMON Manuals
