Removal [10/2018 - ]: Procedure

  1. REMOVE REAR BUMPER ASSEMBLY

    See step  1

  2. REMOVE POWER BACK DOOR WARNING BUZZER

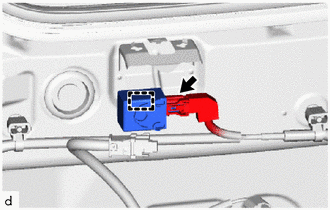

    1. Disconnect the connector.
      GTY812957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a clip remover, disengage the clamp to remove the power back door warning buzzer.
