Components [10/2018 - ]

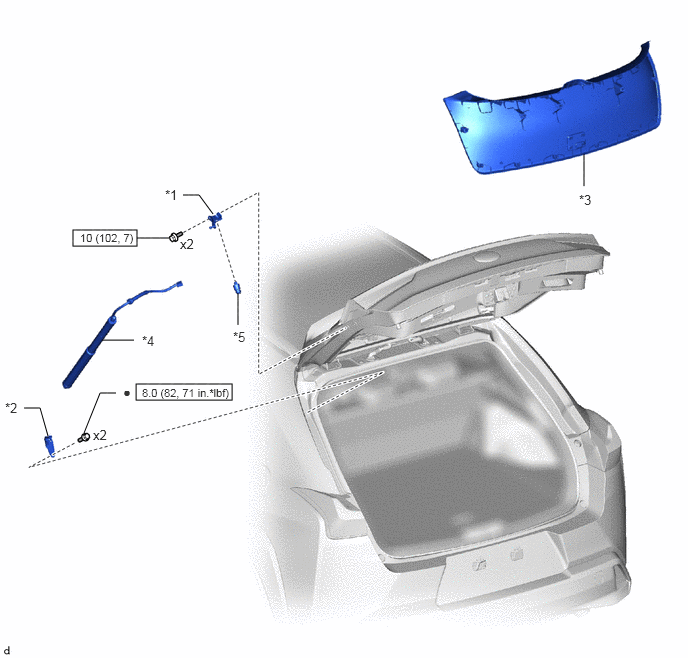

Fig 1: Power Back Door Drive Unit Replacement Components With Torque Specifications
GTY777854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BACK DOOR DAMPER STAY LOWER BRACKET *2 BACK DOOR DAMPER STAY UPPER BRACKET
*3 BACK DOOR TRIM BOARD ASSEMBLY *4 POWER BACK DOOR UNIT ASSEMBLY SET
*5 BACK DOOR UPPER STOPPER CUSHION - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
