Inspection [10/2018 - ]: Procedure
- INSPECT FUEL LID WITH MOTOR LOCK ASSEMBLY
- Check the operation of the fuel lid with lock motor assembly.

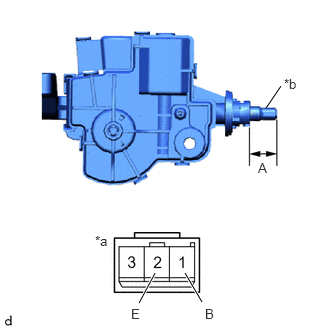

*a Component without harness connected
(Fuel Lid With Motor Lock Assembly)*b Shaft - Apply auxiliary battery voltage to the fuel lid with motor lock assembly connector, and check that the fuel lid with motor lock assembly operates smoothly as follows.
Standard
Measurement Condition Specified Condition Auxiliary battery positive (+) → Terminal 1 (B)
Auxiliary battery negative (-) → Terminal 2 (E)Unlock Auxiliary battery positive (+) → Terminal 2 (E)
Auxiliary battery negative (-) → Terminal 1 (B)Lock If the result is not as specified, replace the fuel lid with motor lock assembly.
- Apply auxiliary battery voltage to the fuel lid with motor lock assembly connector, and check that the fuel lid with motor lock assembly operates smoothly as follows.
- Measure the shaft stroke.
Standard
Area Lock Condition Specified Condition A Unlock 16.05 +/- 0.6 mm (0.6319 +/- 0.0236 in.) Lock 9.69 mm (0.3815 in.)
- Check the operation of the fuel lid with lock motor assembly.
