Components [10/2018 - 08/2021]
| *1 | TONNEAU COVER ASSEMBLY | - | - |
| *1 | REAR WIPER ARM AND BLADE ASSEMBLY | *2 | REAR WIPER ARM HEAD CAP |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
| *A | w/o Power Back Door | *B | w/ Power Back Door |
| *1 | BACK DOOR CONTROL SWITCH | *2 | BACK DOOR LOCK COVER |
| *3 | BACK DOOR TRIM BASE | *4 | BACK DOOR TRIM BOARD ASSEMBLY |
| *5 | BACK DOOR TRIM UPPER PANEL ASSEMBLY | *6 | DOOR CONTROL SWITCH |
| *7 | DOOR PULL HANDLE | *8 | ROPE HOOK |

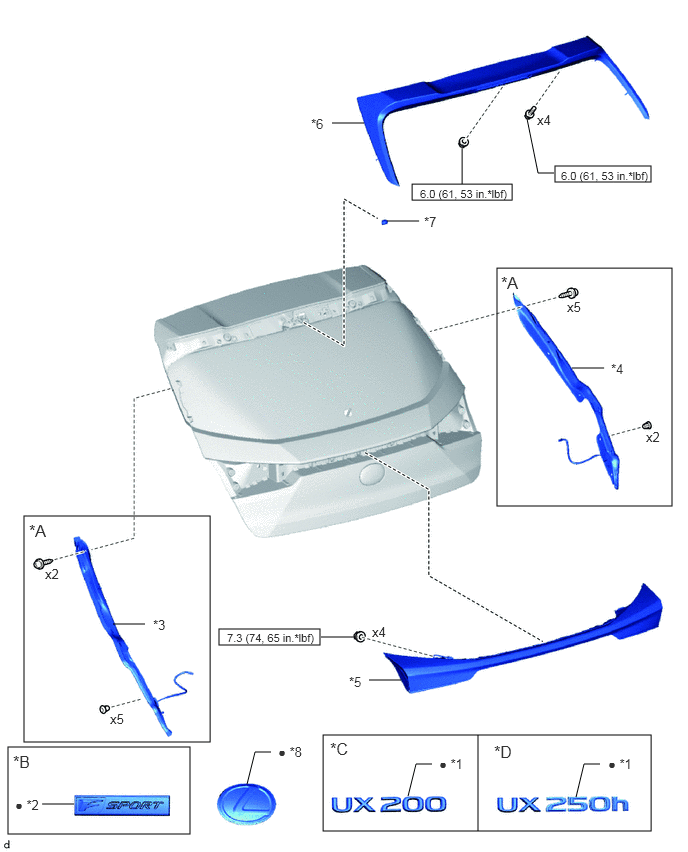

| *A | w/ Power Back Door | *B | for Sport Package |
| *C | for Gasoline Model | *D | for HV Model |
| *1 | NO. 2 BACK DOOR NAME PLATE | *2 | NO. 3 BACK DOOR NAME PLATE |
| *3 | POWER BACK DOOR SENSOR ASSEMBLY LH | *4 | POWER BACK DOOR SENSOR ASSEMBLY RH |
| *5 | REAR LIGHT ASSEMBLY | *6 | REAR SPOILER ASSEMBLY |
| *7 | REAR WASHER NOZZLE | *8 | SYMBOL EMBLEM |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
| *A | w/ Power Back Door | *B | w/o Power Back Door |
| *1 | BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH | *2 | BACK DOOR LOWER STOPPER CUSHION |
| *3 | BACK DOOR OPENER SWITCH ASSEMBLY | *4 | BACK DOOR OUTSIDE HANDLE PLATE |
| *5 | BACK DOOR UPPER STOPPER CUSHION | *6 | BACK DOOR WEIGHT |
| *7 | LICENSE PLATE LIGHT ASSEMBLY | *8 | MULTIPLEX NETWORK DOOR ECU |
| *9 | NO. 1 AMPLIFIER ANTENNA ASSEMBLY | *10 | REAR TELEVISION CAMERA ASSEMBLY |
| *11 | REAR WIPER MOTOR ASSEMBLY | *12 | REAR WIPER MOTOR GROMMET |
| N*m (kgf*cm, ft.*lbf): Specified torque | MP grease |
| *1 | NO. 2 BACK DOOR WIRE | *2 | NO. 5 ANTENNA CORD SUB-ASSEMBLY |
| *3 | WIRING HARNESS CLAMP BRACKET | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
