Removal [10/2018 - ]: Procedure

  1. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    See step  12 [10/2018 - 08/2021] See step  12 [08/2021 - 07/2022] See step  12 [07/2022 - ]

  2. REMOVE BACK DOOR OUTSIDE HANDLE PLATE

    See step  22 [10/2018 - 08/2021] See step  21 [08/2021 - 07/2022] See step  21 [07/2022 - ]

  3. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

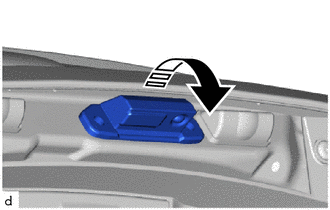

    1. Disconnect the back door opener switch assembly as shown in the illustration.
      GTY811089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

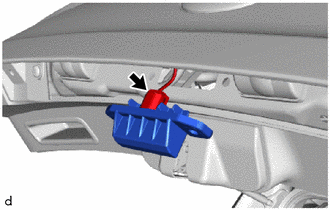

    2. Disconnect the connector to remove the back door opener switch assembly.
      GTY807698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
