Inspection [10/2018 - ]: Procedure

  1. INSPECT BACK DOOR OPENER SWITCH ASSEMBLY
    1. Check the operation of the opener switch.
      1. Measure the resistance according to the value(s) in the table below.

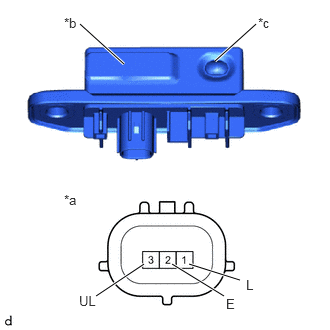

        GTY813969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (Back Door Opener Switch Assembly)
        *b Open Switch
        *c Lock Switch

        Standard Resistance

        Tester Connection Switch Condition Specified Condition
        2 (E) - 3 (UL) Back door opener switch not pushed (OFF) 10 kΩ or higher
        2 (E) - 3 (UL) Back door opener switch pushed (ON) Below 1 Ω

        If the result is not as specified, replace the back door opener switch assembly.

    2. Check the operation of the lock switch.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Switch Condition Specified Condition
        1 (L) - 2 (E) Back door lock switch not pushed (OFF) 10 kΩ or higher
        1 (L) - 2 (E) Back door lock switch pushed (ON) Below 1 Ω

        If the result is not as specified, replace the back door opener switch assembly.
