Removal [07/2022 - ]: Procedure

  1. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    See step  12 [07/2022 - ]

  2. REMOVE MULTIPLEX NETWORK DOOR ECU

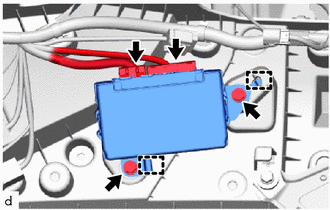

    1. Remove the 2 bolts.
      GTY1123881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guides to remove the multiplex network door ECU.
      NOTE:

      Be careful when removing the multiplex network door ECU may fall and become damaged.

    3. Disconnect the 2 connectors.
