Back Door Closer Ecu
>>
Components [07/2022 - ]
Components [07/2022 - ]

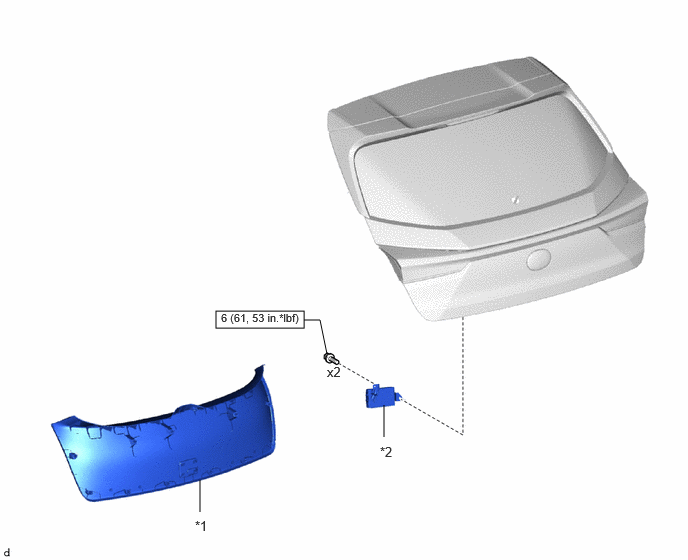

Fig 1: Back Door Closer ECU With Torque Specifications [07/2022 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
BACK DOOR TRIM BOARD ASSEMBLY
*2
MULTIPLEX NETWORK DOOR ECU
N*m (kgf*cm, ft.*lbf): Specified torque
-
-
