Removal [10/2018 - 10/2019]: Procedure

  1. PRECAUTION

    Refer to PRECAUTION [10/2018 - 10/2019]

  2. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

    Refer to REMOVAL [10/2018 - 10/2019]

  3. REMOVE TELEPHONE ECU WIRE (w/ Roof Antenna)
    1. w/ Navigation System:

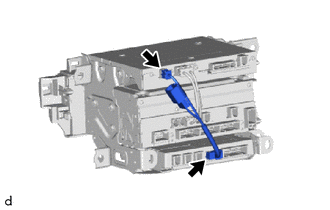

      GTY803473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the 2 connectors to remove the telephone ECU wire.
    2. w/o Navigation System:

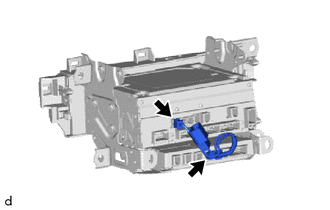

      GTY803478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the 2 connectors to remove the telephone ECU wire.
  4. REMOVE DCM (TELEMATICS TRANSCEIVER)
    1. Remove the nut.

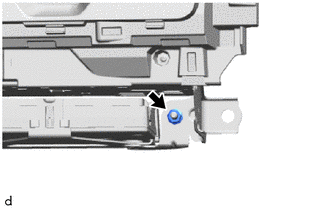

      GTY803110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts.

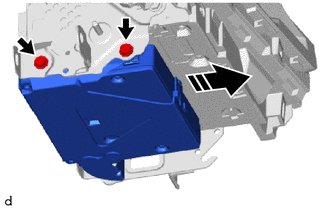

      GTY802533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Remove the DCM (telematics transceiver) as shown in the illustration.
