Installation [10/2018 - ]: Procedure

  1. INSTALL NO. 1 AMPLIFIER ANTENNA ASSEMBLY

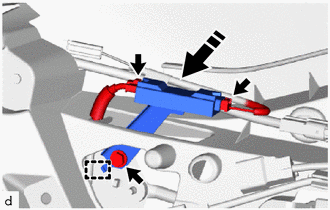

    1. Engage the guide to install the No. 1 amplifier antenna assembly as shown in the illustration.
      GTY834509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    3. Connect the 2 connectors.
  2. INSTALL RADIO ANTENNA SUB-ASSEMBLY (REAR SPOILER SUB-ASSEMBLY)

    Refer to PROCEDURE - Step 1

  3. INSTALL BACK DOOR TRIM UPPER PANEL ASSEMBLY

    Refer to PROCEDURE - Step 34 [10/2018 - 08/2021] , or refer to PROCEDURE - Step 33 [08/2021 - 07/2022] , or refer to PROCEDURE - Step 33 [07/2022 - ]

  4. INSTALL BACK DOOR TRIM BOARD ASSEMBLY

    Refer to PROCEDURE - Step 26 [10/2018 - 08/2021] , or refer to PROCEDURE - Step 25 [08/2021 - 07/2022] , or refer to PROCEDURE - Step 25 [07/2022 - ]
