System Diagram [10/2018 - 10/2019]

HINT:

Refer to System Diagram of CAN Communication System.

1. for HV Model:

   Refer to SYSTEM DIAGRAM [10/2018 - 10/2019]

2. for Gasoline Model:

   Refer to SYSTEM DIAGRAM [10/2018 - 10/2019]

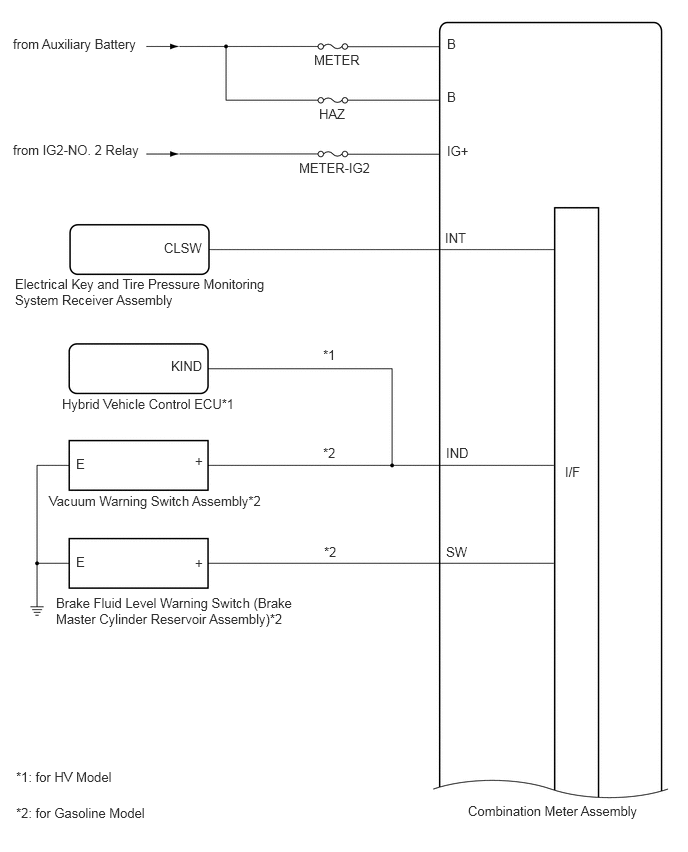

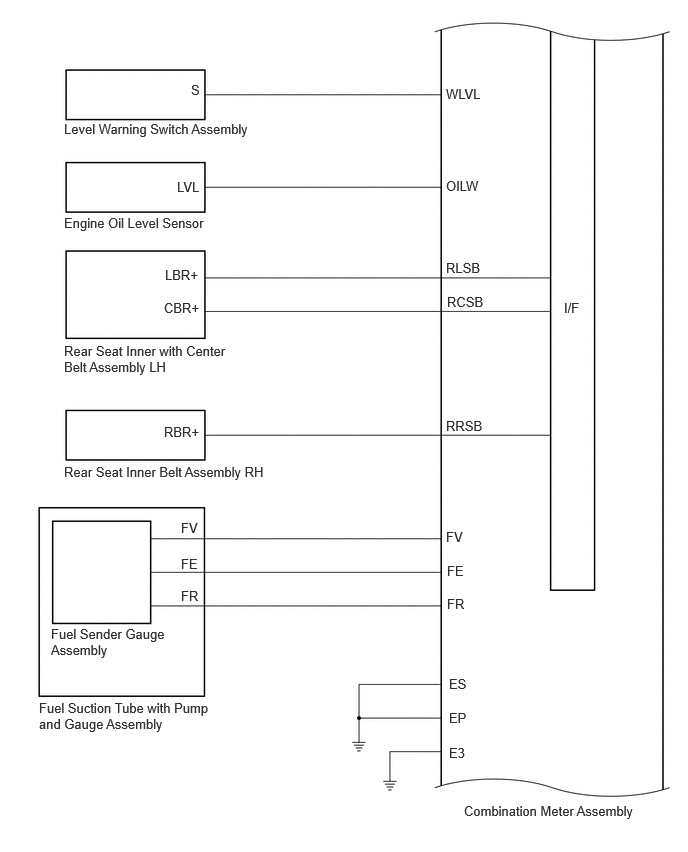

1. COMBINATION METER ASSEMBLY DIAGRAM

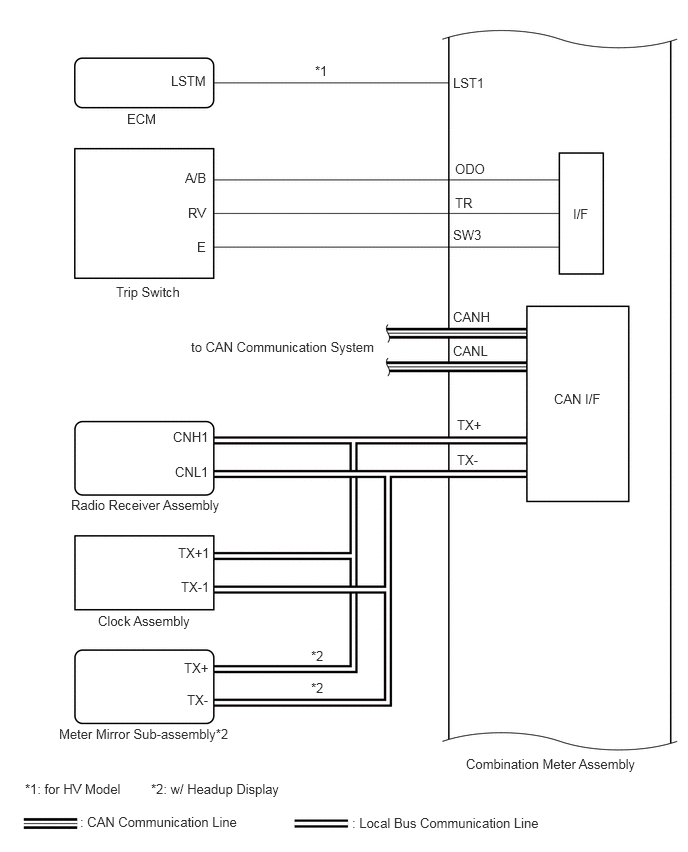

   Fig 1: Combination Meter Assembly Diagram (1 Of 4)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 2: Combination Meter Assembly Diagram (2 Of 4)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 3: Combination Meter Assembly Diagram (3 Of 4)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 4: Combination Meter Assembly Diagram (4 Of 4)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

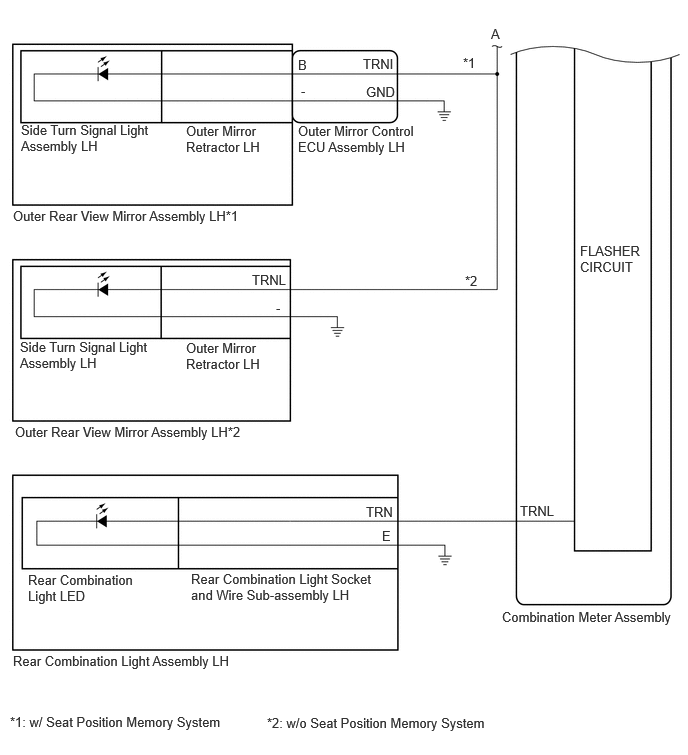

2. TURN SIGNAL LIGHT DIAGRAM

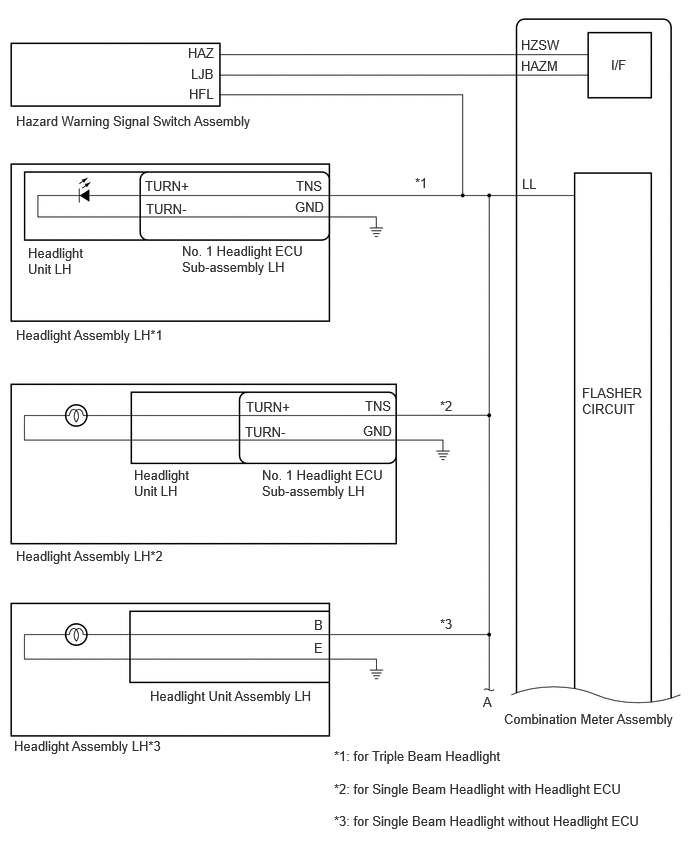

   1. LH SIDE
      Fig 5: Turn Signal Light LH Diagram (1 Of 2)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 6: Turn Signal Light LH Diagram (2 Of 2)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

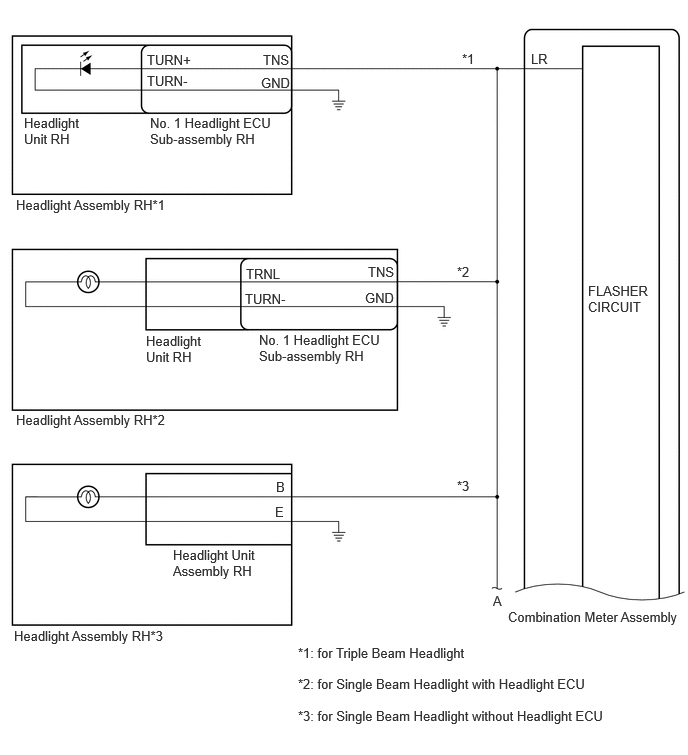

   2. RH SIDE

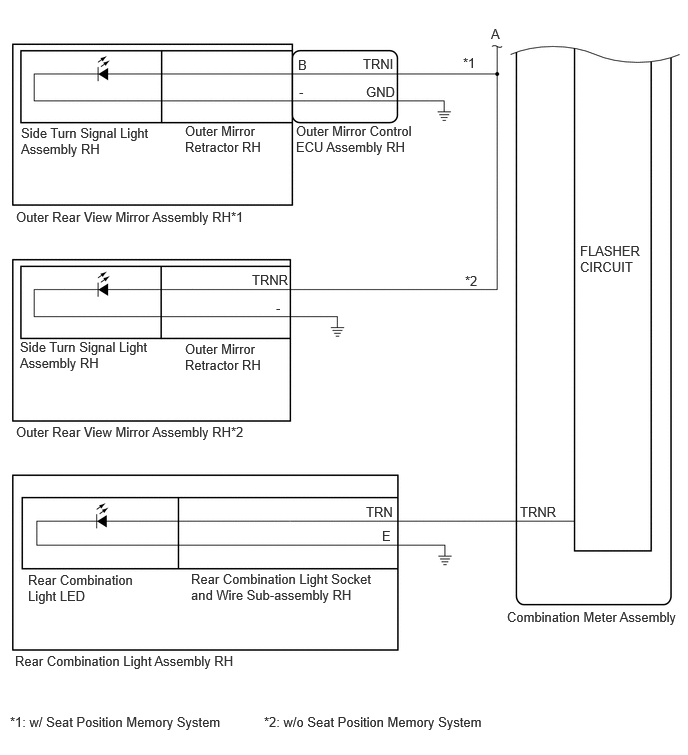

      Fig 7: Turn Signal Light RH Diagram (1 Of 2)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 8: Turn Signal Light RH Diagram (2 Of 2)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

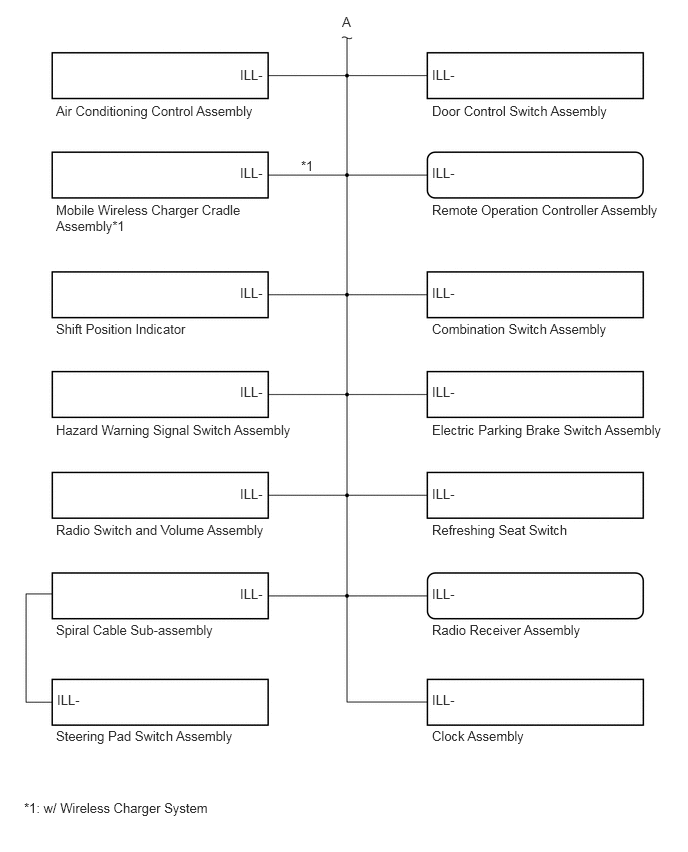

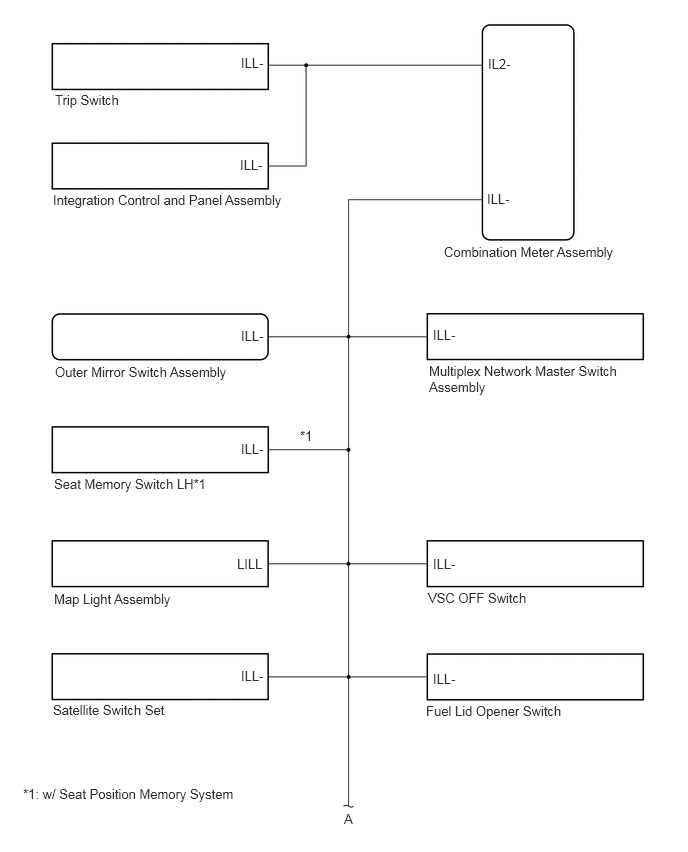

3. ILLUMINATION DIAGRAM
   Fig 9: Illumination Diagram (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 10: Illumination Diagram (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

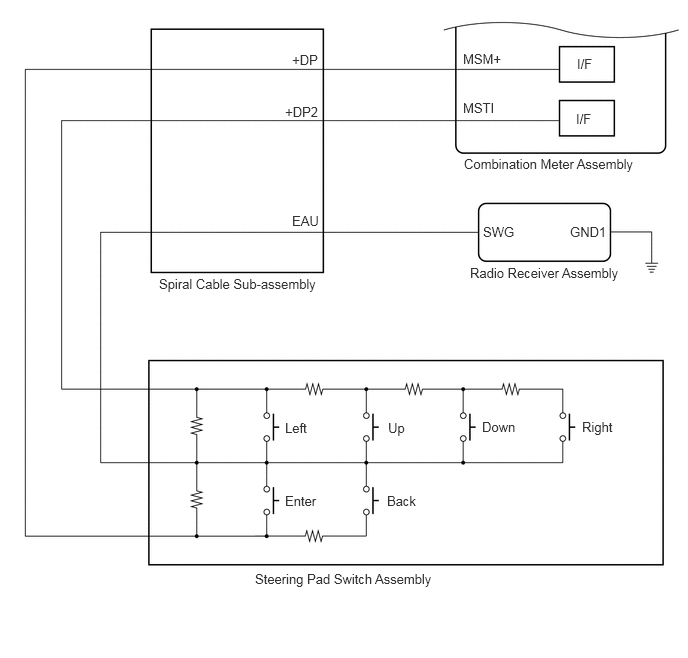

4. SPEED SIGNAL DIAGRAM

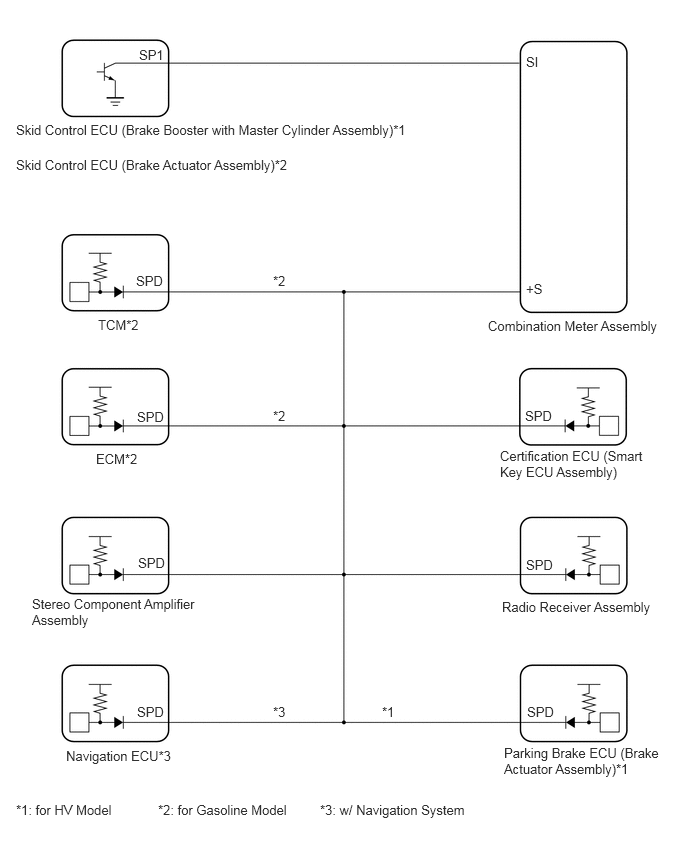

   Fig 11: Speed Signal Diagram

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
