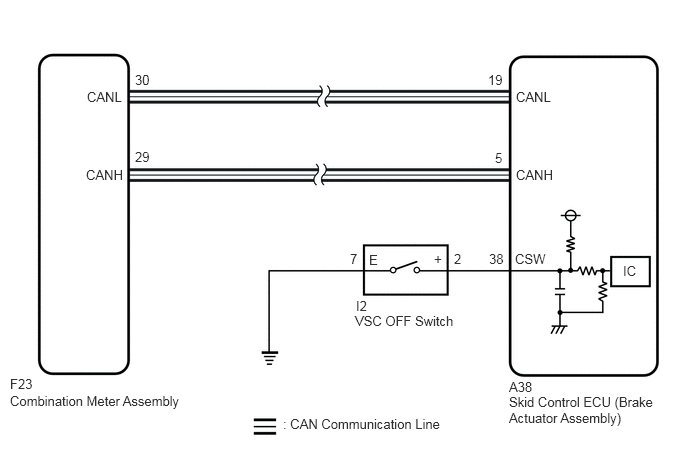

VSC OFF Switch Circuit [10/2018 - 07/2022]: Wiring Diagram

GTY834208

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
