Components [10/2015 - 03/2018]

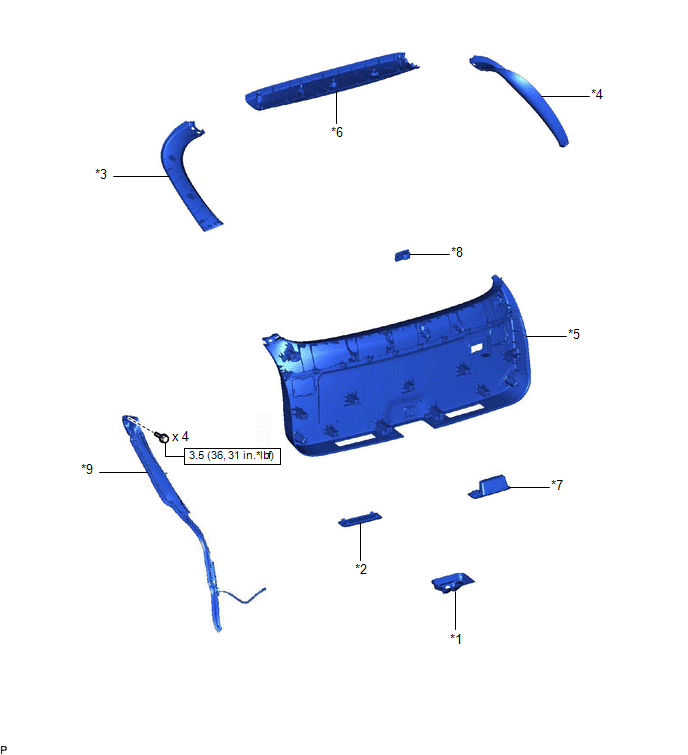

Fig 1: Power Back Door Touch Sensor Replacement Components With Torque Specifications [10/2015 - 03/2018]
| Callout | Description | Callout | Description |
| *1 | BACK DOOR LOCK COVER | *2 | BACK DOOR TRIM BASE |
| *3 | BACK DOOR TRIM COVER LH | *4 | BACK DOOR TRIM COVER RH |
| *5 | BACK DOOR TRIM PANEL ASSEMBLY | *6 | BACK WINDOW UPPER PANEL TRIM |
| *7 | DOOR PULL HANDLE | *8 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
| *9 | POWER BACK DOOR SENSOR ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
