Removal [08/2016 - 03/2018]: Procedure

  1. REMOVE AUXILIARY BATTERY

    Refer to REMOVAL [08/2016 - 08/2019]

  2. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 1 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 1 [12/2017 - 08/2019]

  3. REMOVE REAR NO. 3 FLOOR BOARD

    Refer to PROCEDURE - Step 3 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 3 [12/2017 - 08/2019]

  4. REMOVE REAR NO. 4 FLOOR BOARD

    Refer to PROCEDURE - Step 5 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 5 [12/2017 - 08/2019]

  5. REMOVE FRONT DECK FLOOR BOX

    Refer to PROCEDURE - Step 6 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 6 [12/2017 - 08/2019]

  6. REMOVE DECK SIDE TRIM BOX RH

    Refer to PROCEDURE - Step 7 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 7 [12/2017 - 08/2019]

  7. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 8 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 8 [12/2017 - 08/2019]

  8. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 11 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 11 [12/2017 - 08/2019]

  9. REMOVE REAR SEAT ASSEMBLY LH

    Refer to REMOVAL [08/2016 - 08/2019]

  10. REMOVE UPPER QUARTER TRIM PAD LH

    Refer to PROCEDURE - Step 23 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 23 [12/2017 - 08/2019]

  11. REMOVE REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 24 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 24 [12/2017 - 08/2019]

  12. REMOVE REAR FLOOR FINISH SIDE PLATE LH

    Refer to PROCEDURE - Step 25 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 25 [12/2017 - 08/2019]

  13. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 26 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 26 [12/2017 - 08/2019]

  14. REMOVE ROPE HOOK ASSEMBLY

    Refer to PROCEDURE - Step 27 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 27 [12/2017 - 08/2019]

  15. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  16. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 29 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 29 [12/2017 - 08/2019]

  17. REMOVE FUEL PUMP CONTROL ECU ASSEMBLY (w/ Woofer)

    Refer to PROCEDURE - Step 5

  18. REMOVE NO. 2 DECK BOARD REINFORCEMENT (w/ Woofer)

    Refer to PROCEDURE - Step 18

  19. REMOVE REAR NO. 1 SPEAKER BRACKET (w/ Woofer)

    Refer to PROCEDURE - Step 19

  20. REMOVE REAR NO. 3 SPEAKER ASSEMBLY (w/ Woofer)

    Refer to PROCEDURE - Step 20

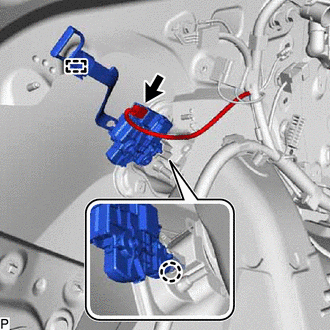

  21. REMOVE FUEL LID LOCK WITH MOTOR ASSEMBLY
    1. Disengage the clamp.
      GTY616262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw.
    3. Disconnect the connector to remove the fuel lid lock with motor assembly.
