System Diagram [08/2016 - 03/2018]
>>
System Diagram [08/2016 - 03/2018]
System Diagram [08/2016 - 03/2018]

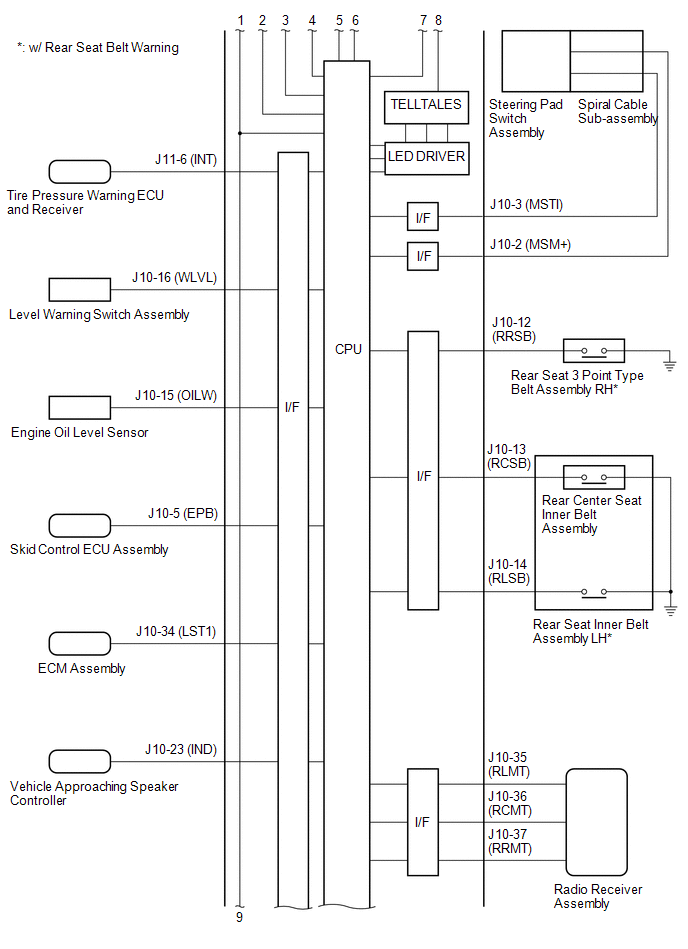

Fig 1: Meter / Gauge System Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

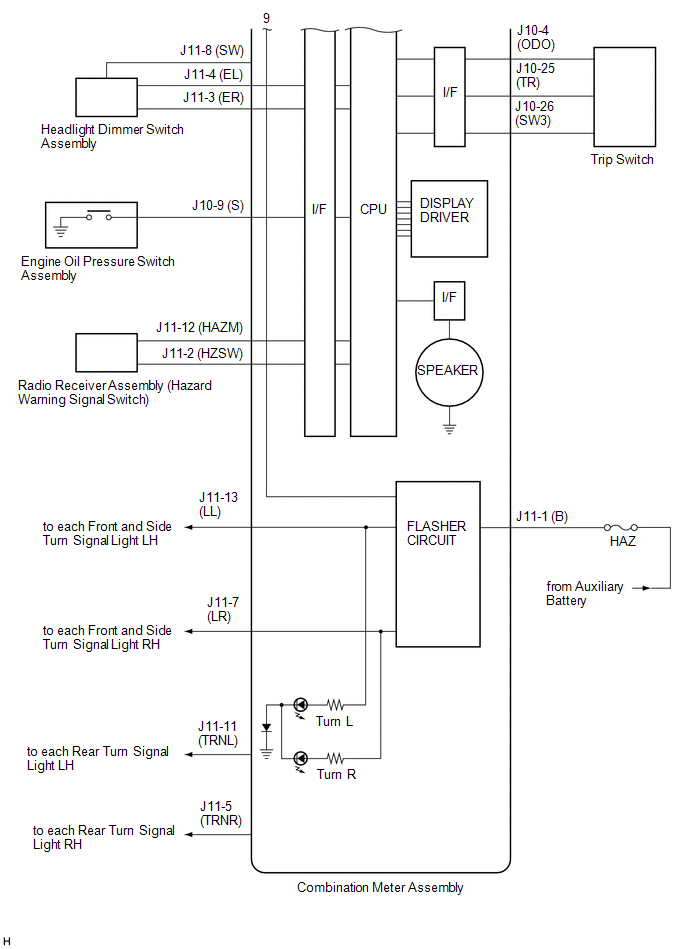

Fig 2: Meter / Gauge System Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

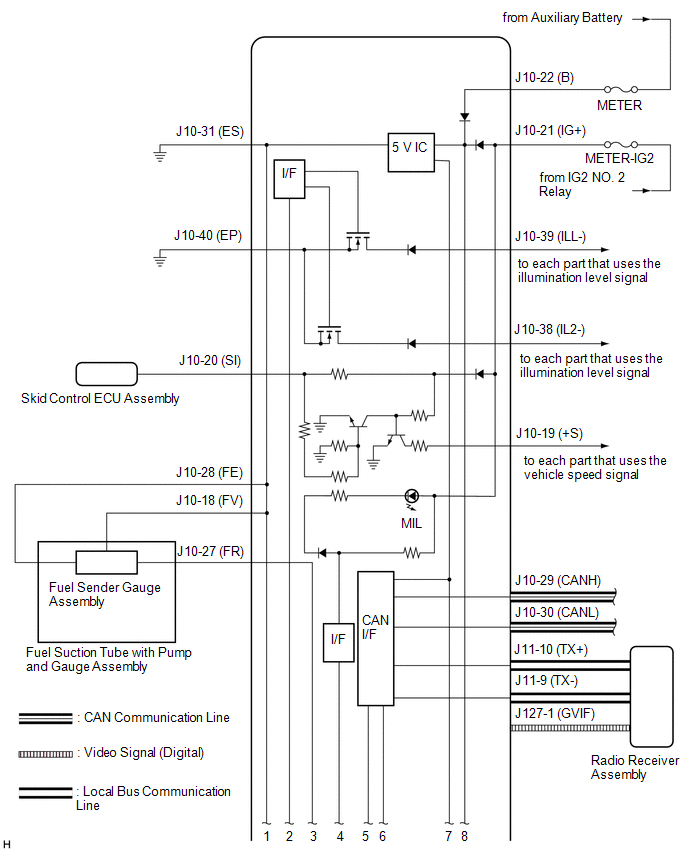

Fig 3: Meter / Gauge System Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
