Components [10/2015 - ]

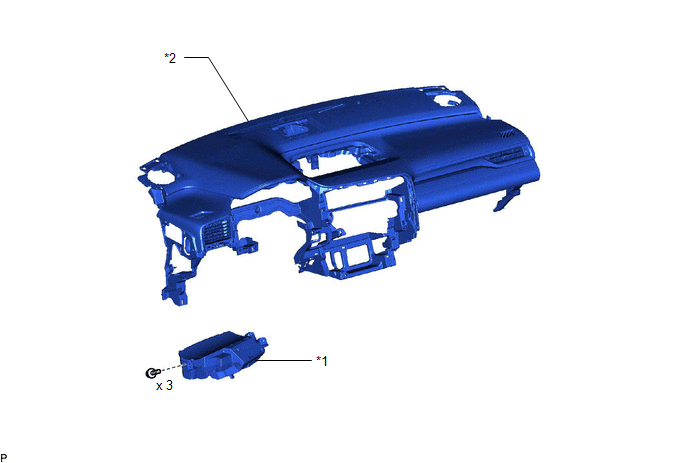

Fig 1: Head-Up Display Replacement Components
GTY683511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 HEAD-UP DISPLAY (METER MIRROR SUB-ASSEMBLY) *2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
