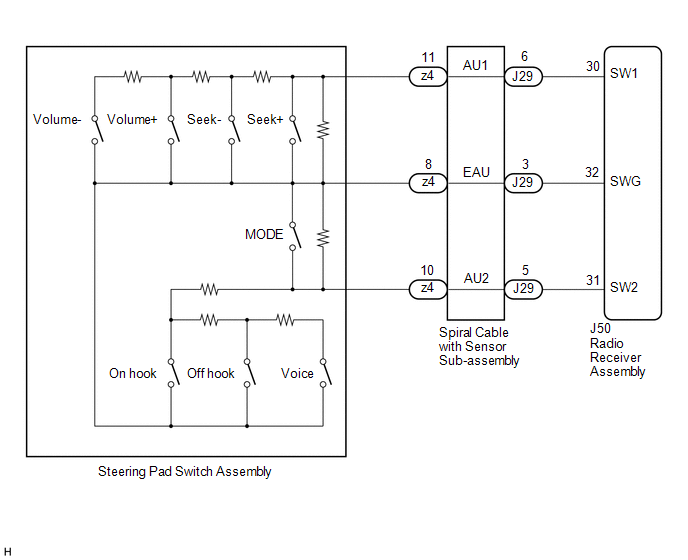

Steering Pad Switch Circuit [10/2015 - 08/2019]: Wiring Diagram

GTY672156

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
