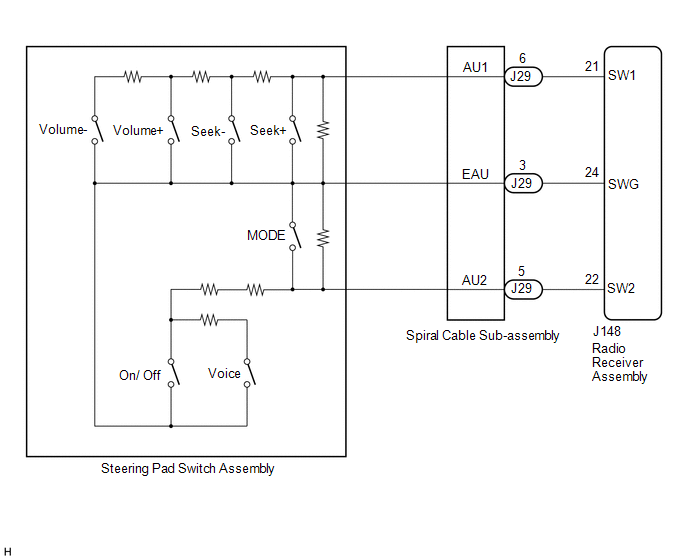

Steering Pad Switch Circuit [08/2019 - ]: Wiring Diagram

GTY962613

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
