Reassembly [08/2019 - ]: Procedure

  1. INSTALL REAR COMBINATION LIGHT LENS AND BODY (for Bulb Type Turn Signal Light)
  2. INSTALL REAR COMBINATION LIGHT BRACKET (for Bulb Type Turn Signal Light)
    1. Install the rear combination light bracket with the screw.
      GTY646225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR LIGHT CORD (for Bulb Type Turn Signal Light)
    1. Connect the connector to install the rear light cord.
      GTY646222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the rear light cord as shown in the illustration to connect them as a unit.
      GTY638107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  4. INSTALL REAR TURN SIGNAL LIGHT BULB (for Bulb Type Turn Signal Light)
    1. Install the rear turn signal light bulb to the rear light cord.
    2. Turn the rear light cord with the rear turn signal light bulb as shown in the illustration to connect them as a unit.
      GTY625913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  5. INSTALL REAR COMBINATION LIGHT CAP (for LED Type Turn Signal Light)
    1. for TMMC Made:

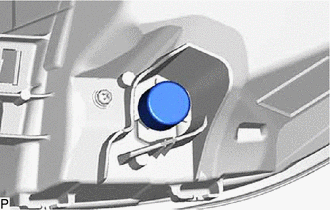

      1. Install the rear combination light cap.
        GTY961275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Use the same procedure for all rear combination light caps.
