Disassembly [10/2015 - 08/2019]: Procedure

  1. REMOVE REAR TURN SIGNAL LIGHT BULB (for Bulb Type)

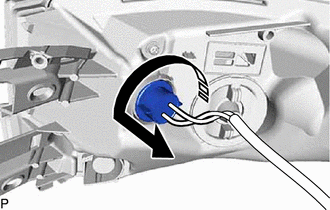

    1. Turn the rear light socket and wire with the rear turn signal light bulb as shown in the illustration to disconnect them as a unit.
      GTY663553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Remove the rear turn signal light bulb from the rear light socket and wire.
  2. REMOVE REAR LIGHT SOCKET AND WIRE

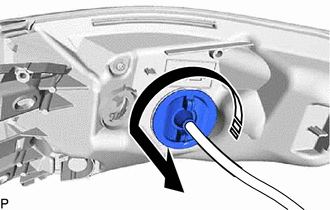

    1. Turn the rear light socket and wire as shown in the illustration to disconnect them as a unit.
      GTY616892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect the connector to remove the rear light socket and wire.
      GTY646222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR COMBINATION LIGHT BRACKET
    1. Remove the screw and rear combination light bracket.
      GTY646225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR COMBINATION LIGHT LENS AND BODY
