Repair [08/2019 - ]: Procedure

  1. INSTALL UPPER HEADLIGHT PROTECTOR RETAINER

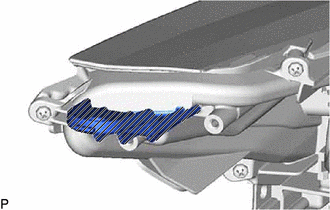

    1. Cut off the part shaded in the illustration and sand smooth with sandpaper.
      GTY960955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      After cutting off the part, place the upper headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of a supply retainer.

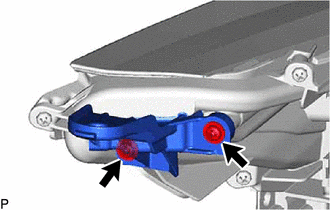

    2. Install the upper headlight protector retainer with the 2 screws.
      GTY960639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL UPPER NO. 2 HEADLIGHT PROTECTOR RETAINER

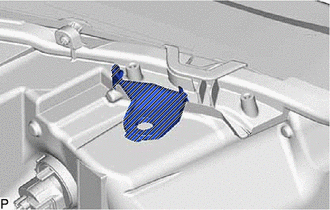

    1. Cut off the part shaded in the illustration and sand smooth with sandpaper.
      GTY961188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      After cutting off the part, place the upper No. 2 headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of a supply retainer.

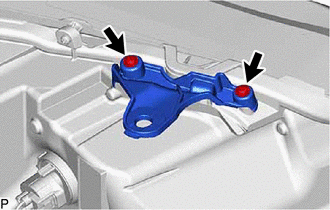

    2. Install the upper No. 2 headlight protector retainer with the 2 screws.
      GTY961189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL LOWER NO. 2 HEADLIGHT PROTECTOR RETAINER

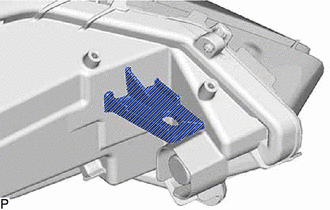

    1. Cut off the part shaded in the illustration and sand smooth with sandpaper.
      GTY961187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      After cutting off the part, place the lower No. 2 headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of a supply retainer.

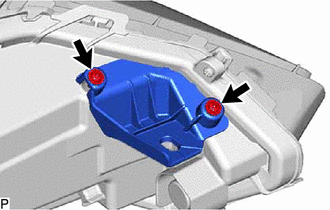

    2. Install the lower No. 2 headlight protector retainer with the 2 screws.
      GTY960687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
