Components [10/2015 - 08/2019]

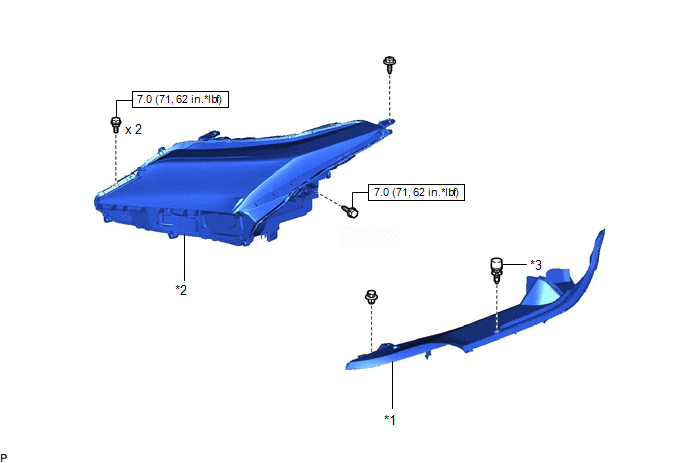

Fig 1: Headlight Assembly (for Triple Beam Headlight) Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP	*2	HEADLIGHT ASSEMBLY
*3	CENTER HOOD CUSHION	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

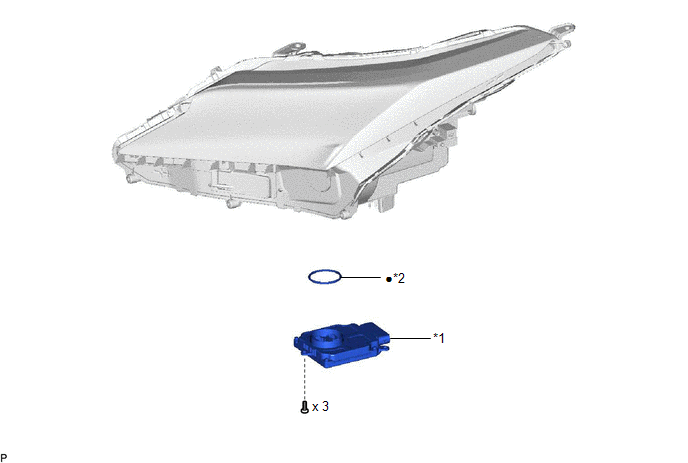

Fig 2: Headlight Assembly (for Triple Beam Headlight) Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HEADLIGHT ECU SUB-ASSEMBLY	*2	HEADLIGHT GASKET
•	Non-reusable part	-	-

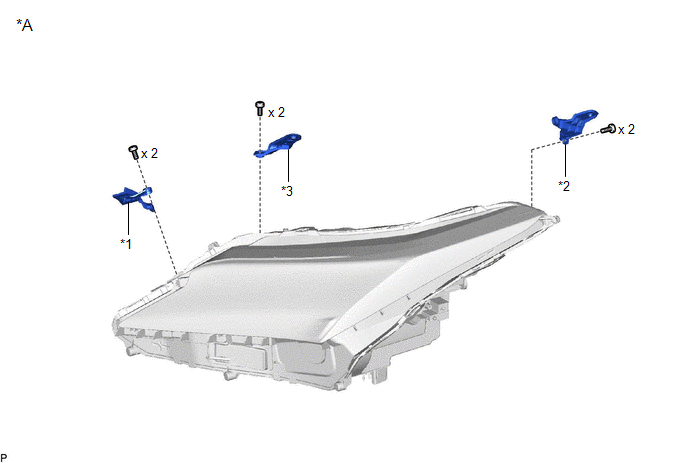

Fig 3: Headlight Assembly (for Triple Beam Headlight) Replacement Components (3 Of 3)

*A	Bracket for Repair	-	-
*1	LOWER NO. 2 HEADLIGHT PROTECTOR RETAINER	*2	UPPER HEADLIGHT PROTECTOR RETAINER
*3	UPPER NO. 2 HEADLIGHT PROTECTOR RETAINER	-	-
