Speaker Circuit [03/2018 - 08/2019]: Wiring Diagram

  1. for 9 Speakers

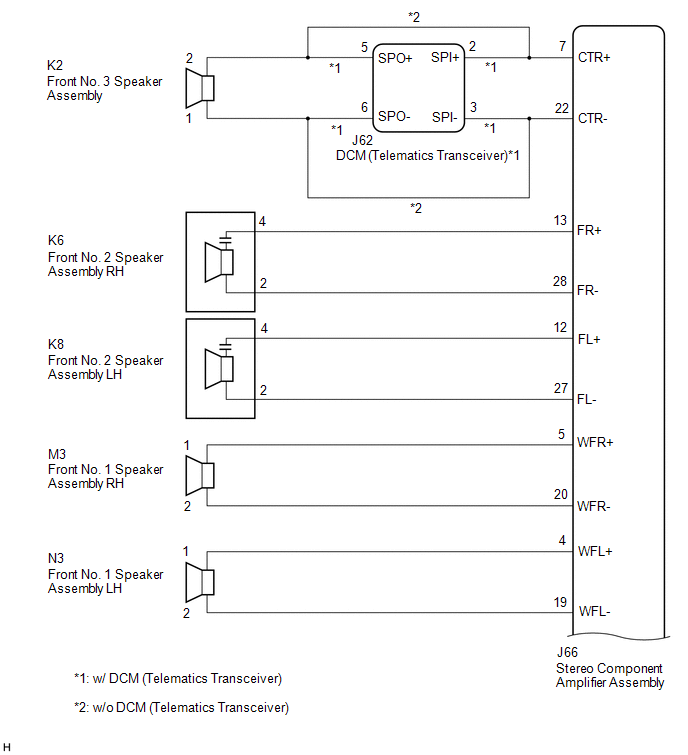

    GTY661522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

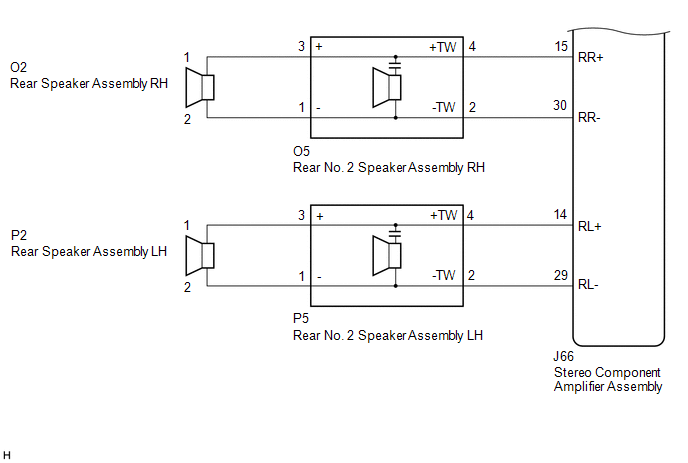

    GTY668083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for 12 Speakers

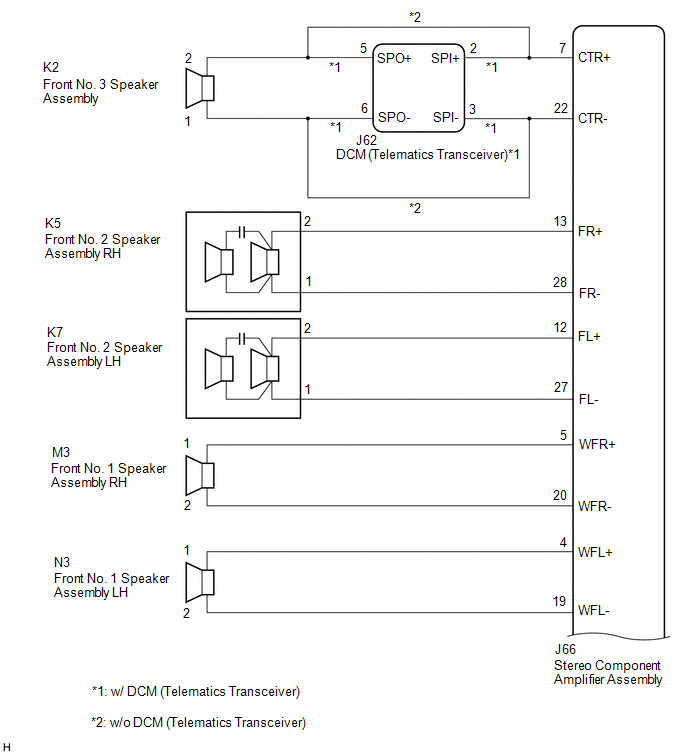

    GTY614114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    w/o Rear No. 2 Seat

    GTY644335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    w/ Rear No. 2 Seat

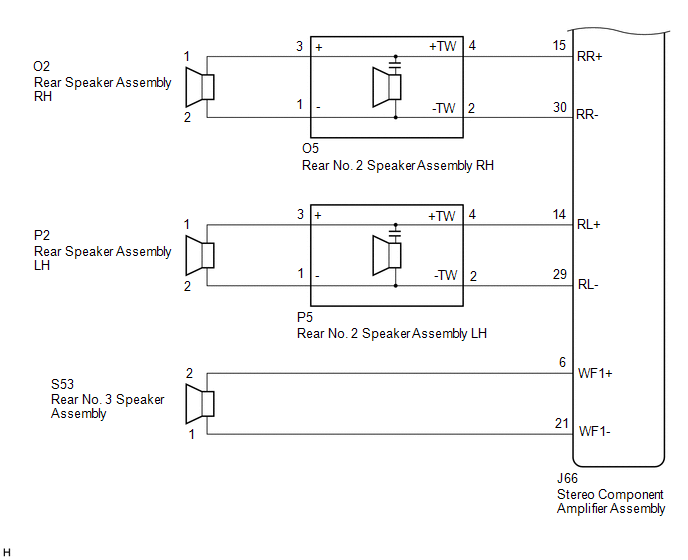

    GTY833047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
