Speaker Circuit [08/2019 - ]: Wiring Diagram

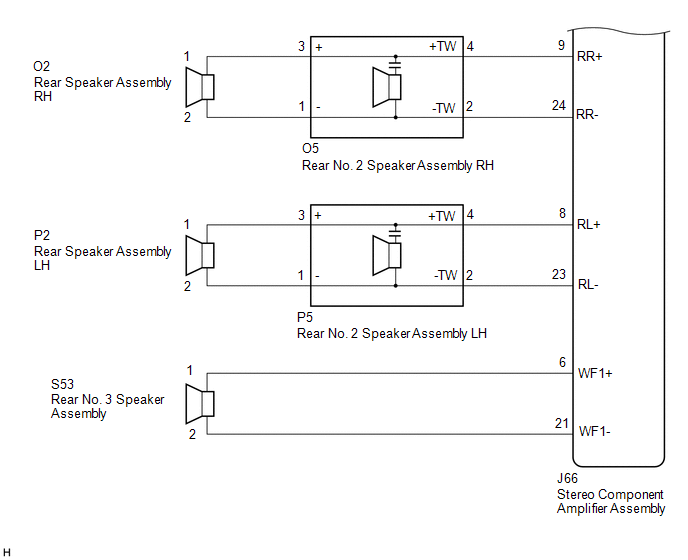

for 9 Speakers

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

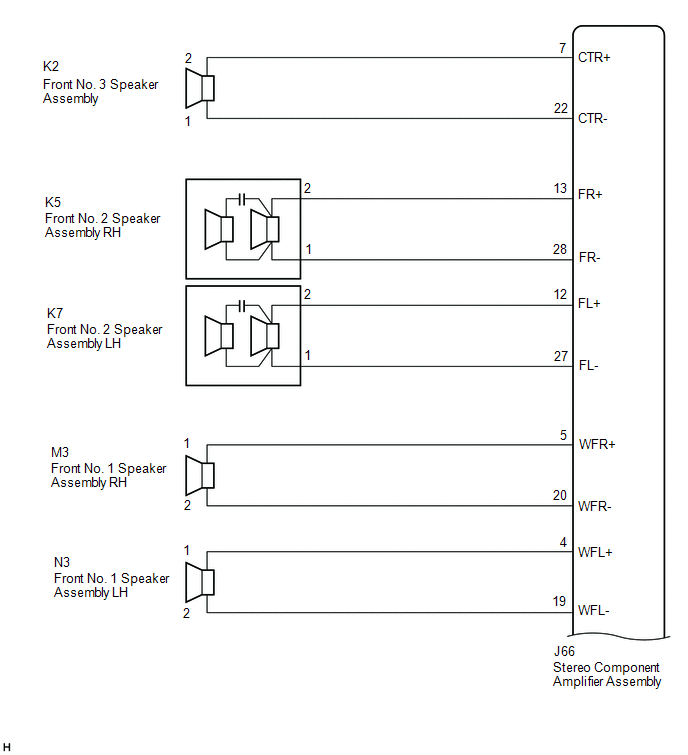

for 9 Speakers

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

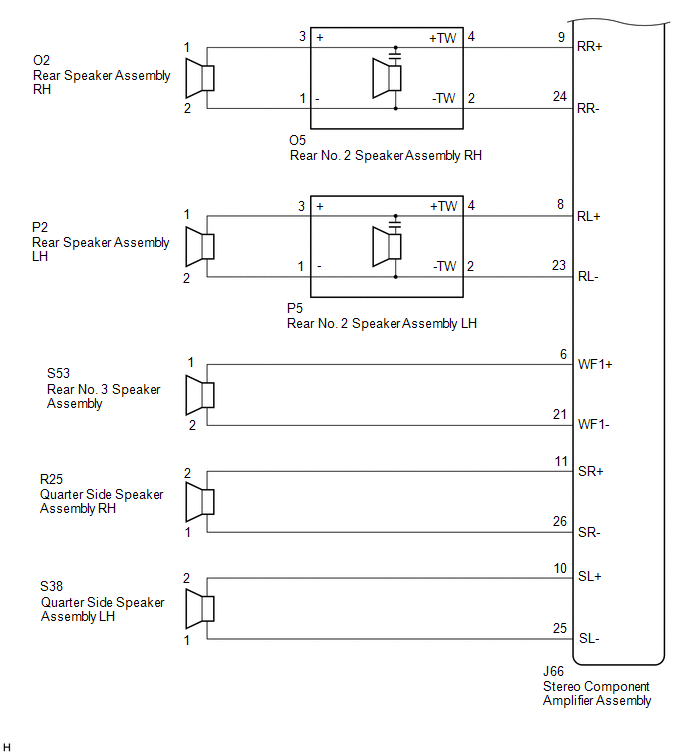

for 12 Speakers

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

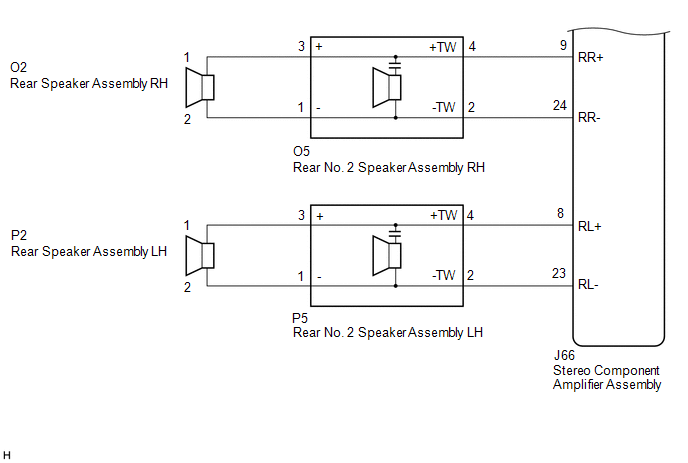

for 12 Speakers

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

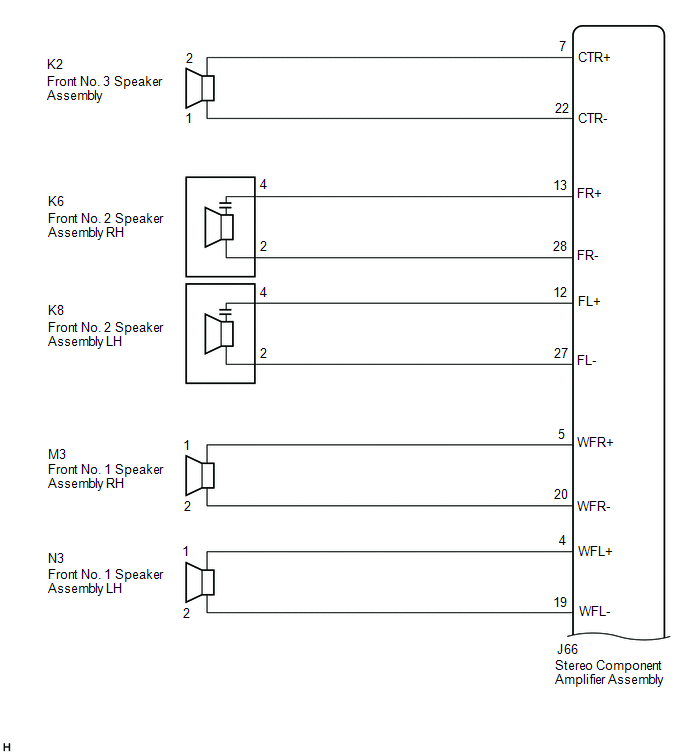

for 15 Speakers

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

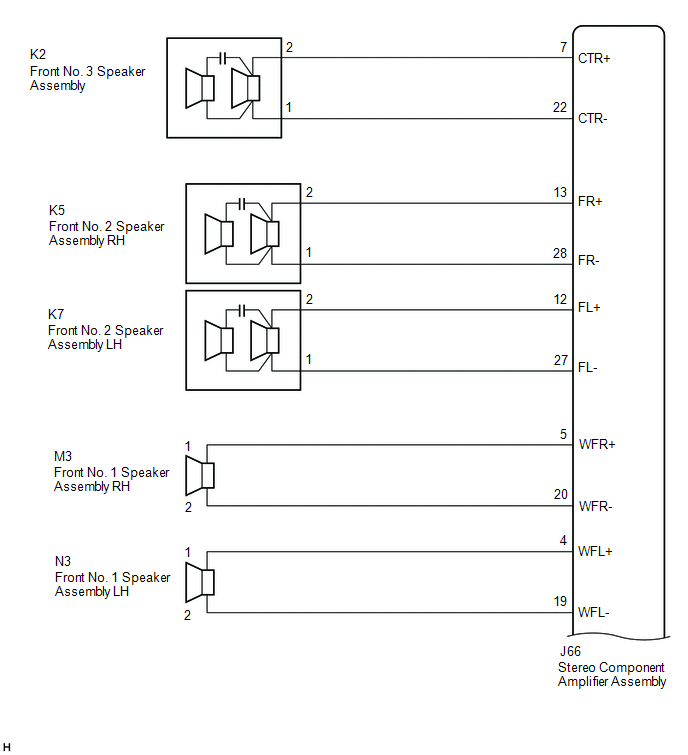

for 15 Speakers

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
