Installation [03/2018 - ]: Procedure

INSTALL REAR NO. 3 SPEAKER ASSEMBLY

NOTE:

Do not touch the speaker cone.

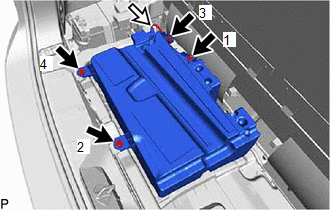

Install the rear No. 3 speaker assembly with the 4 bolts.

HINT:

Install the bolts in the order shown in the illustration.

GTY797036

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the connector.

INSTALL REAR FLOOR FINISH PLATE
Refer to PROCEDURE - Step 53
INSTALL FRONT DECK FLOOR BOX
Refer to PROCEDURE - Step 54
INSTALL REAR DECK FLOOR BOX
Refer to PROCEDURE - Step 55
CONNECT REAR NO. 2 SEAT ASSEMBLY
Refer to PROCEDURE - Step 56
INSTALL NO. 1 DECK BOARD
Refer to PROCEDURE - Step 57
INSTALL DECK SIDE TRIM BOX LH
Refer to PROCEDURE - Step 58
INSTALL BATTERY SERVICE HOLE COVER
Refer to PROCEDURE - Step 59
INSTALL REAR NO. 4 FLOOR BOARD
Refer to PROCEDURE - Step 60
INSTALL DECK BOARD ASSEMBLY
Refer to PROCEDURE - Step 61
INSTALL TONNEAU COVER ASSEMBLY
Refer to PROCEDURE - Step 62
