System Diagram [08/2019 - ]

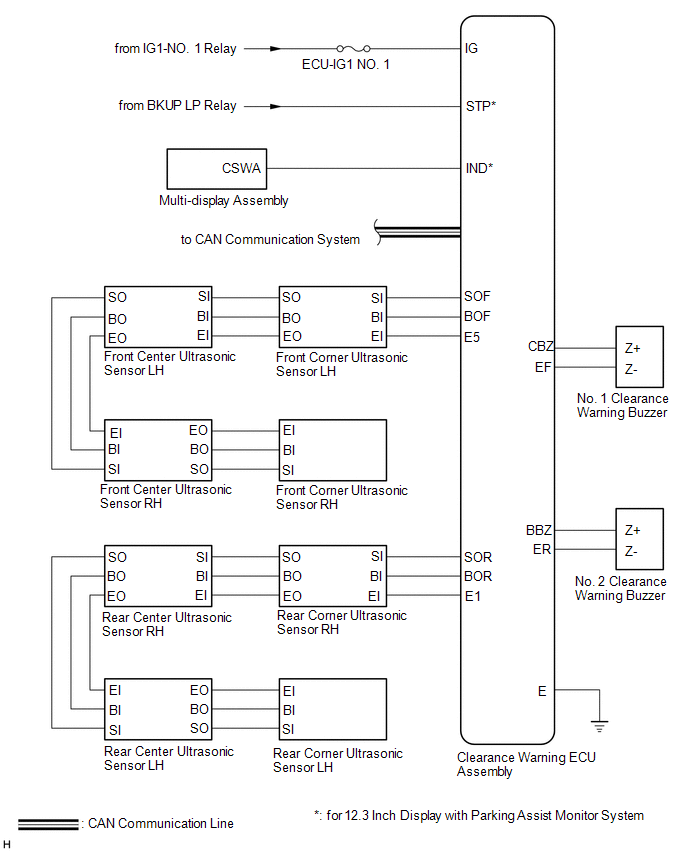

Fig 1: Intuitive Parking Assist System (W/ Intelligent Clearance Sonar System) Wiring Diagram (1 Of 3) [08/2019 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Panoramic View Monitor System

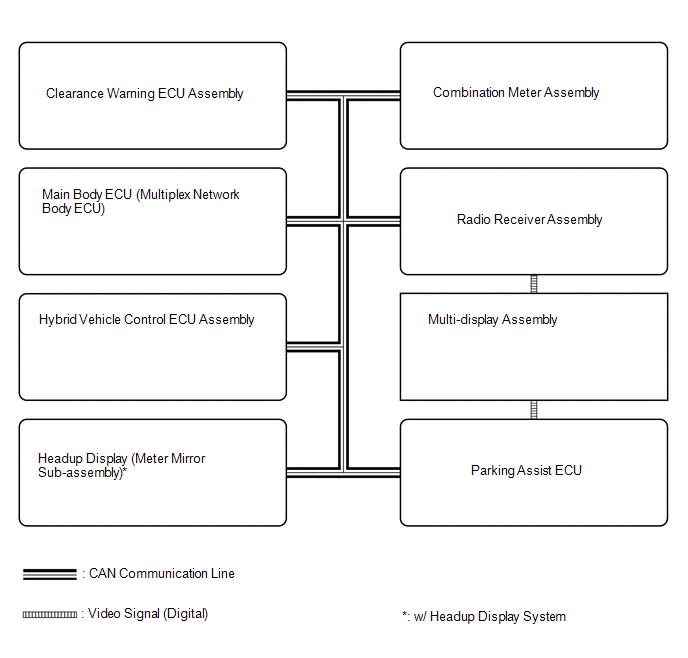

Fig 2: Intuitive Parking Assist System (W/ Intelligent Clearance Sonar System) Wiring Diagram (w/ Panoramic View Monitor System) (2 Of 3) [08/2019 - ]

w/ Parking Assist Monitor System

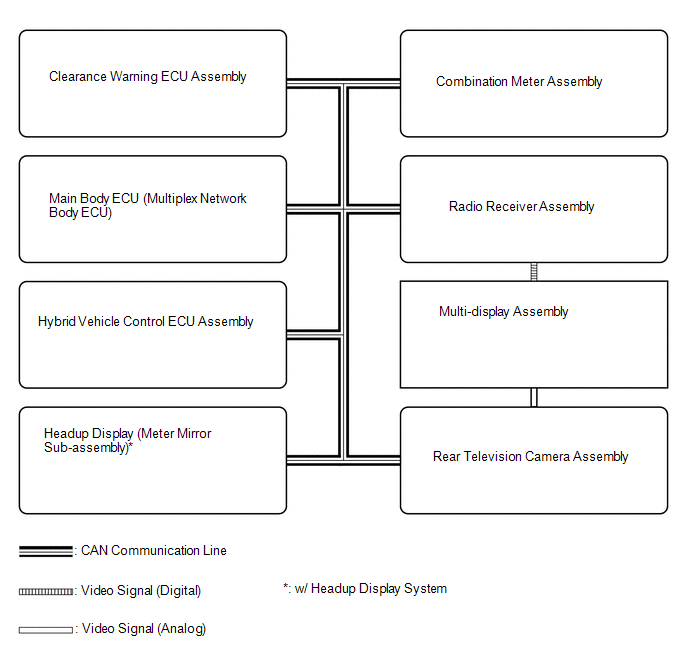

Fig 3: Intuitive Parking Assist System (W/ Intelligent Clearance Sonar System) Wiring Diagram (w/ Parking Assist Monitor System) (3 Of 3) [08/2019 - ]
