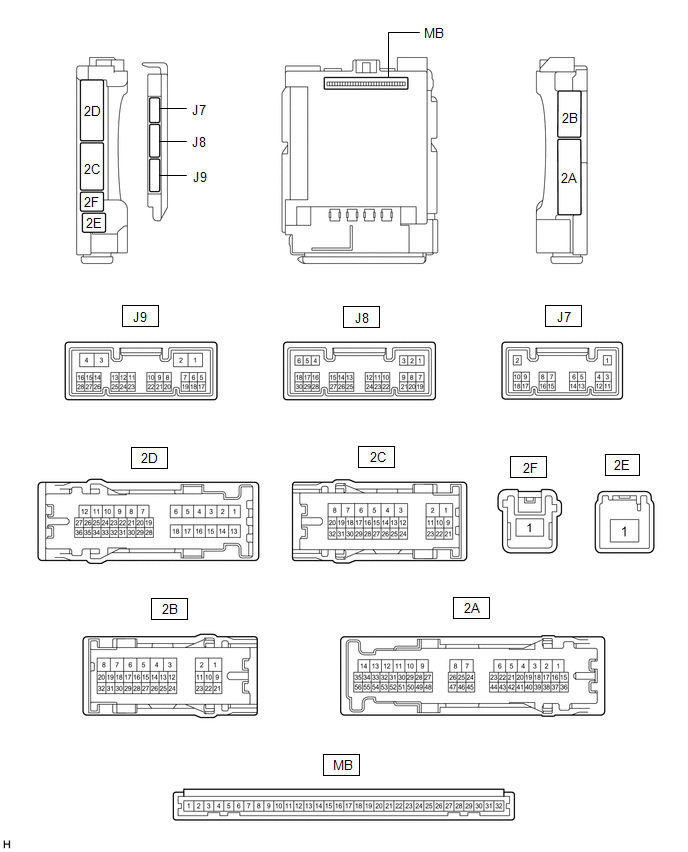

Terminals Of Ecu [10/2015 - ]
- CHECK MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) AND INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.
Refer to REMOVAL [10/2015 - 08/2016] , or refer to REMOVAL [08/2016 - 03/2018] , or refer to REMOVAL [03/2018 - 08/2019] , or refer to REMOVAL [08/2019 - ]
- Reconnect the instrument panel junction block assembly connectors.
- Measure the resistance and voltage according to the value (s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition MB-31 (BECU) - Body ground - Auxiliary battery power supply Power switch off 11 to 14 V MB-32 (IG) - Body ground - Ignition power supply (IG signal) Power switch off Below 1 V Power switch on (IG) 11 to 14 V MB-30 (ACC) - Body ground - Ignition power supply (ACC signal) Power switch off Below 1 V Power switch on (ACC) 11 to 14 V MB-11 (GND1) - Body ground - Ground Always Below 1 Ω J8-6 (FLCY) - Body ground P - Body ground Front door courtesy light switch assembly (for LH) input Front door LH closed 10 kΩ or higher Front door LH open Below 1 Ω J8-27 (FRCY) - Body ground R - Body ground Front door courtesy light switch assembly (for RH) input Front door RH closed 10 kΩ or higher Front door RH open Below 1 Ω MB-13 (LCTY) - Body ground - Rear door courtesy light switch assembly (for LH) input Rear door LH closed 10 kΩ or higher Rear door LH open Below 1 Ω MB-2 (RCTY) - Body ground - Rear door courtesy light switch assembly (for RH) input Rear door RH closed 10 kΩ or higher Rear door RH open Below 1 Ω J8-11 (HCTY) - Body ground R - Body ground Engine hood courtesy switch input Engine hood open 10 kΩ or higher Engine hood closed Below 1 Ω MB-14 (TRLY) - Body ground - Taillight relay drive output Power switch off 11 to 14 V - Install the main body ECU (multiplex network body ECU) to instrument panel junction block assembly.
Refer to INSTALLATION [10/2015 - 03/2018] , or refer to INSTALLATION [03/2018 - ]
- Measure the voltage and check for pulses according to the value (s) in the table below.
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition 2B-13 (LSFL) - Body ground B - Body ground Front door LH unlock detection switch input Front door LH unlocked Below 1 V Front door LH locked Pulse generation 2B-12 (LSFR) - Body ground P - Body ground Front door RH unlock detection switch input Front door RH unlocked Below 1 V Front door RH locked Pulse generation J8-29 (L2) - Body ground P - Body ground Driver door key-linked lock input Driver door key cylinder turned to lock position Below 1 V Driver door key cylinder off Pulse generation J8-2 (UL3) - Body ground V - Body ground Driver door key-linked unlock input Driver door key cylinder turned to unlock position Below 1 V Driver door key cylinder off Pulse generation 2B-14 (LSWL) - Body ground V - Body ground Rear door LH unlock detection switch input Rear door LH unlocked Below 1 V Rear door LH locked Pulse generation J9-2 (LSWR) - Body ground L - Body ground Rear door RH unlock detection switch input Rear door RH unlocked Below 1 V Rear door RH locked Pulse generation 2C-26 (SH) - Body ground*1 L - Body ground Security horn assembly drive Security horn assembly sounding
(Theft deterrent system in alarm sounding state)Pulse generation
(Below 1 V ← → 11 to 14 V)J9-18 (SSCL) - Body ground*2 W - Body ground Theft warning siren assembly drive Theft warning siren assembly sounding
(Theft deterrent system in alarm sounding state)Pulse generation
(Below 1 V ← → 11 to 14 V)2C-27 (HORN) - Body ground G - Body ground Vehicle horns drive Vehicle horns sounding
(Theft deterrent system in alarm sounding state)Pulse generation
(Below 1 V ← → 11 to 14 V)2C-31 (HRLY) - Body ground V - Body ground*3
B - Body ground*4Headlight relay drive output Low beams blinking
(Theft deterrent system in alarm sounding state)Pulse generation
(Below 1 V ← → 11 to 14 V)2B-29 (ILE) - Body ground GR - Body ground Interior lights drive output Interior lights illuminated
(Theft deterrent system in alarm sounding state)Below 1 V - *1: w/ Security Horn Assembly
- *2: w/o Security Horn Assembly
- *3: w/ Automatic Headlight Beam Level Control System
- *4: w/o Automatic Headlight Beam Level Control System
- Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.
