Removal [09/2015 - 08/2019]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [09/2015 - 12/2017] , or refer to REMOVAL [12/2017 - 08/2019]

  2. REMOVE NO. 4 BACK DOOR WIRE
    1. Disconnect the connector to remove the No. 4 back door wire.

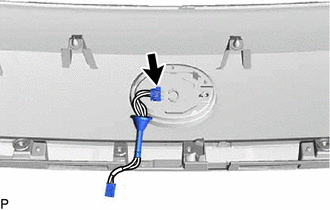

      GTY674860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR EMBLEM SENSOR ASSEMBLY
    1. Disengage the 4 claws and guide to remove the rear emblem sensor assembly.

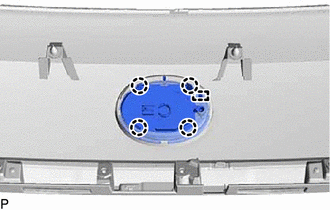

      GTY623248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
