Rear Emblem Sensor
>>
Components [09/2015 - 08/2019]
Components [09/2015 - 08/2019]

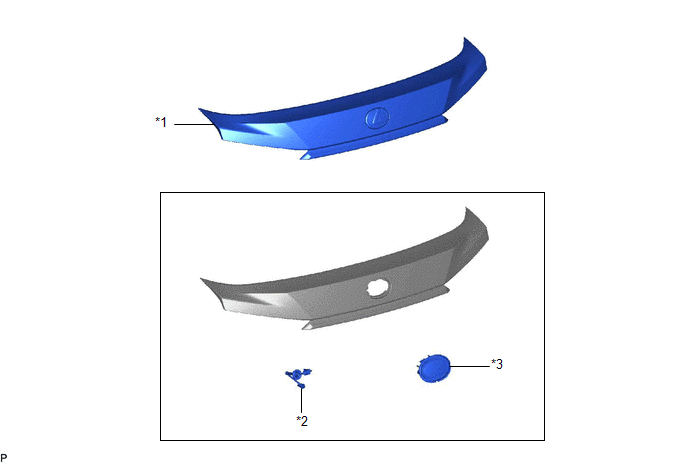

Fig 1: Rear Emblem Sensor Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
*2
NO. 4 BACK DOOR WIRE
*3
REAR EMBLEM SENSOR ASSEMBLY
-
-
