Removal [08/2016 - 12/2017]: Procedure

  1. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [08/2016 - 12/2017]

  2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP

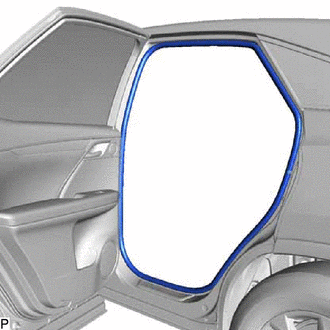

    1. Remove the rear door opening trim weatherstrip.
      GTY616250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
