Removal [09/2015 - 12/2017]: Procedure

  1. REMOVE BACK WINDOW UPPER PANEL TRIM

    See step  1

  2. REMOVE BACK DOOR TRIM COVER LH

    See step  2

  3. REMOVE BACK DOOR TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE BACK DOOR LOCK COVER

    See step  4

  5. REMOVE BACK DOOR TRIM BASE

    See step  5

  6. REMOVE DOOR PULL HANDLE

    See step  6

  7. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 3

  8. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    See step  8

  9. REMOVE POWER BACK DOOR WARNING BUZZER
    1. Disconnect the connector.

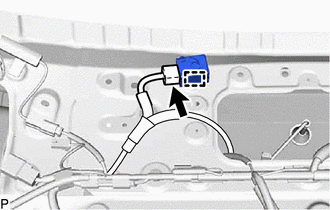

      GTY623263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp to remove the power back door warning buzzer.
