Removal [09/2015 - 12/2017]: Procedure

  1. REMOVE BACK WINDOW UPPER PANEL TRIM

    See step  1

  2. REMOVE BACK DOOR TRIM COVER LH

    See step  2

  3. REMOVE BACK DOOR TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE BACK DOOR LOCK COVER

    See step  4

  5. REMOVE BACK DOOR TRIM BASE

    See step  5

  6. REMOVE DOOR PULL HANDLE

    See step  6

  7. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 3

  8. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    See step  8

  9. REMOVE POWER BACK DOOR UNIT SET ASSEMBLY

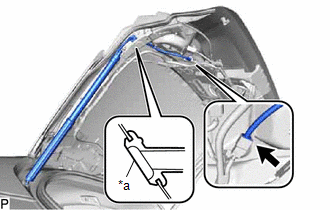

    1. Disconnect the connector.
      GTY656341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Grommet
    2. Disengage the grommet.

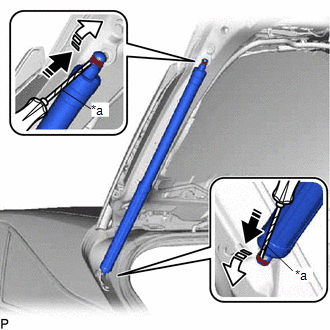

    3. Using a screwdriver with its tip wrapped with protective tape, slightly raise the 2 stop rings as indicated by the arrows, in the order shown in the illustration.
      GTY632515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction (1)
      Remove in this Direction (2)
    4. Disengage the 2 ball joints to remove the power back door unit set assembly.
      NOTE:
      • Remove the power back door unit set assembly while supporting the back door by hand.
      • Make sure to replace the power back door unit set assembly with a new one.

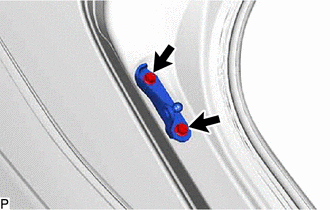

  10. REMOVE BACK DOOR DAMPER STAY UPPER BRACKET
    1. Remove the 2 bolts and back door damper stay upper bracket.
      GTY623264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

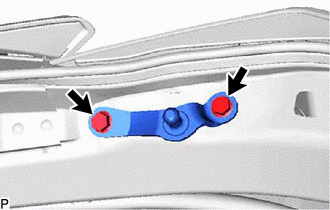

  11. REMOVE BACK DOOR DAMPER STAY LOWER BRACKET
    1. Remove the 2 bolts and back door damper stay lower bracket.
      GTY623269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
