(Door / Hatch) - Service Information (1 Of 2)
>>
Power Back Door Closer Switch
>>
Components [09/2015 - 08/2019]
Components [09/2015 - 08/2019]

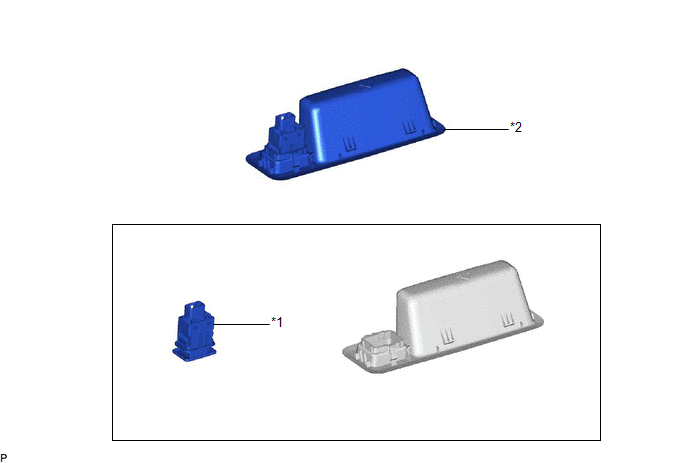

Fig 1: Power Back Door Closer Switch Replacement Components [09/2015 - 08/2019]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
DOOR CONTROL SWITCH
*2
DOOR PULL HANDLE
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
