Power Back Door Closer Switch
>>
Components [08/2019 - ]
Components [08/2019 - ]

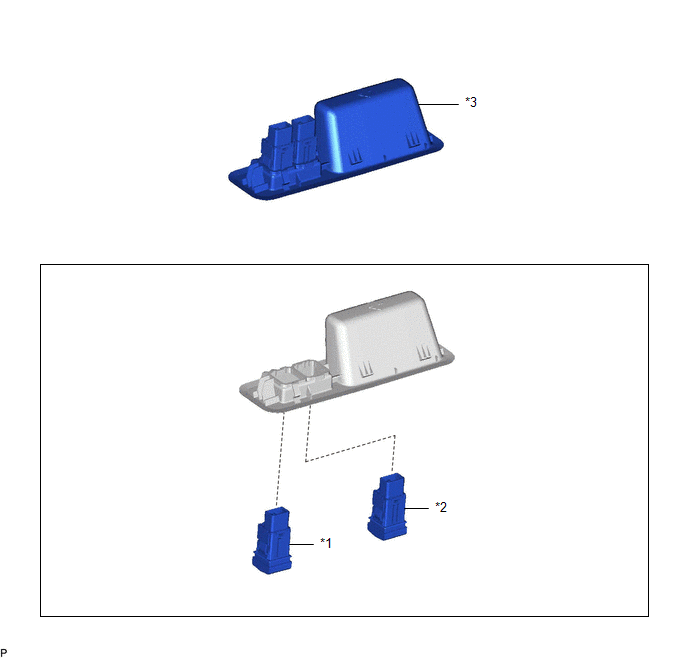

Fig 1: Power Back Door Closer Switch Replacement Components [08/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
BACK DOOR CONTROL SWITCH
*2
DOOR CONTROL SWITCH
*3
DOOR PULL HANDLE
-
-
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
