Removal [08/2019 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [08/2019 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2019 - ]

  3. REMOVE REAR BUMPER ASSEMBLY (w/o Rear No. 2 Seat)

    Refer to REMOVAL [08/2019 - ]

  4. REMOVE REAR BUMPER ASSEMBLY (w/ Rear No. 2 Seat)

    Refer to REMOVAL [08/2019 - ]

  5. REMOVE KICK DOOR CONTROL SENSOR WITH BRACKET (except F-Sport without Rear No. 2 Seat)
    1. Disconnect the connector.
      GTY951200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the terminals of the kick door control sensor connector.

    2. Disengage the clamp.
    3. Remove the 2 screws.

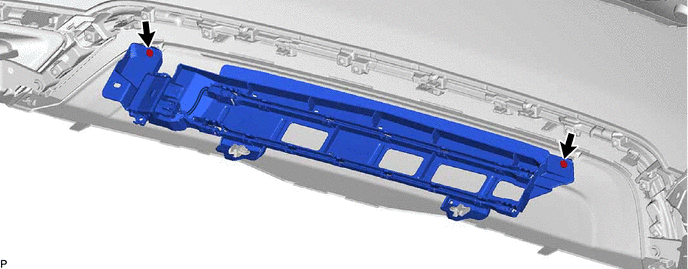

      GTY949996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 clips.

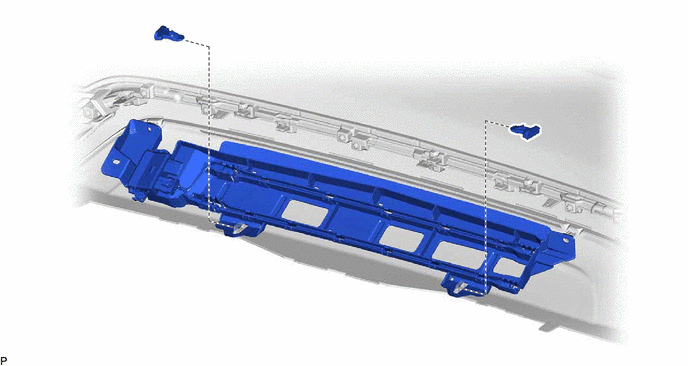

      GTY951197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 4 guides to remove the kick door control sensor with bracket as shown in the illustration.
      GTY951039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  6. REMOVE KICK DOOR CONTROL SENSOR (except F-Sport without Rear No. 2 Seat)
    1. Disengage the 15 claws.
      GTY949995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and guide to remove the kick door control sensor from the kick door control bracket as shown in the illustration.
      GTY949994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
      NOTE:
      • Do not subject the kick door control sensor to a strong impact or drop it.
      • Do not reuse a kick door control sensor which has been subjected to a strong impact or dropped.
      • Be careful not to pull the wire harness.
      • Be careful not to twist the wire harness.
  7. REMOVE KICK DOOR CONTROL SENSOR WITH BRACKET (for F-Sport without Rear No. 2 Seat)
    1. Disconnect the connector.
      GTY950002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the terminals of the kick door control sensor connector.

    2. Disengage the clamp.
    3. Remove the 2 screws.
      GTY951224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 clips.
      GTY951225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 4 guides to remove the kick door control sensor with bracket as shown in the illustration.
      GTY950851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  8. REMOVE KICK DOOR CONTROL SENSOR (for F-Sport without Rear No. 2 Seat)
    1. Disengage the 16 claws.
      GTY951216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and guide to remove the kick door control sensor from the kick door control bracket as shown in the illustration.
      GTY950977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
      NOTE:
      • Do not subject the kick door control sensor to a strong impact or drop it.
      • Do not reuse a kick door control sensor which has been subjected to a strong impact or dropped.
      • Be careful not to pull the wire harness.
      • Be careful not to twist the wire harness.
  9. REMOVE KICK DOOR CONTROL SENSOR WITH BRACKET (w/ Rear No. 2 Seat)
    1. Disconnect the connector.
      GTY951184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the terminals of the kick door control sensor connector.

    2. Disengage the clamp.
    3. Remove the screw.
      GTY951296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
    4. Remove the 2 clips.
    5. Disengage the guide to remove the kick door control sensor with bracket as shown in the illustration.
  10. REMOVE KICK DOOR CONTROL SENSOR (w/ Rear No. 2 Seat)
    1. Disengage the 16 claws.
      GTY949990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and guide to remove the kick door control sensor from the kick door control bracket as shown in the illustration.
      GTY950220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
      NOTE:
      • Do not subject the kick door control sensor to a strong impact or drop it.
      • Do not reuse a kick door control sensor which has been subjected to a strong impact or dropped.
      • Be careful not to pull the wire harness.
      • Be careful not to twist the wire harness.
