Removal [09/2015 - ]: Procedure

  1. PRECAUTION

    Refer to PRECAUTION [09/2015 - 12/2017] , or refer to PRECAUTION [12/2017 - ]

  2. REMOVE FUEL LID LOCK WITH MOTOR ASSEMBLY

    Refer to REMOVAL [09/2015 - 08/2016] , or refer to REMOVAL [08/2016 - 12/2017] , or refer to REMOVAL [12/2017 - 08/2019] , or refer to REMOVAL [08/2019 - ]

  3. REMOVE REAR WHEEL LH

    Refer to REMOVAL [09/2015 - ]

  4. REMOVE REAR WHEEL HOUSE LINER LH

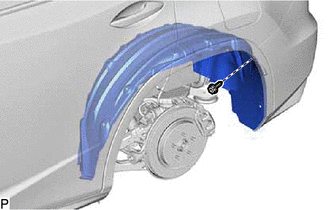

    1. Remove the screw.
      GTY623252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

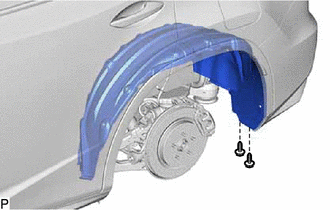

    2. Remove the 2 screws.
      GTY623253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

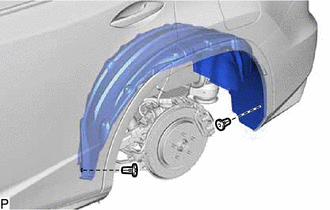

    3. Remove the 2 grommets.
      GTY623255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The grommets need to be replaced with new ones because they will break when they are removed.

    4. Remove the clip.
      GTY623244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

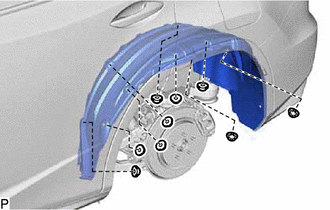

    5. Remove the 9 nuts and rear wheel house liner LH.
      GTY623245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FUEL FILLER OPENING LID ASSEMBLY

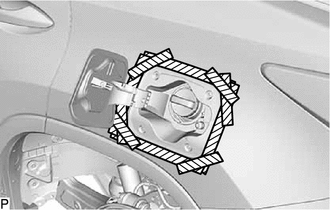

    1. Apply protective tape around the fuel filler opening lid sub-assembly as shown in the illustration.
      GTY648594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

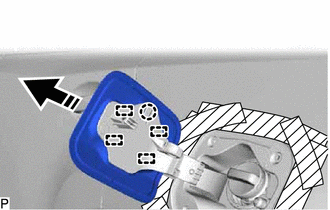

    2. Disengage the claw.
      GTY682157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Disengage the 4 guides to remove the fuel filler opening lid assembly as shown in the illustration.
  6. REMOVE FUEL TANK CAP ASSEMBLY

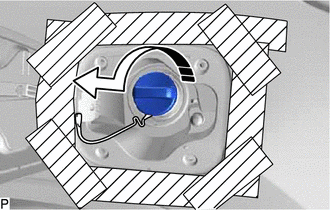

    1. Remove the fuel tank cap assembly as shown in the illustration.
      GTY659105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

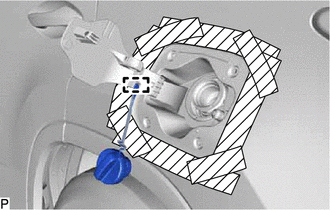

    2. Disengage the clamp to remove the fuel tank cap assembly.
      GTY674857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FUEL FILLER OPENING LID SUB-ASSEMBLY

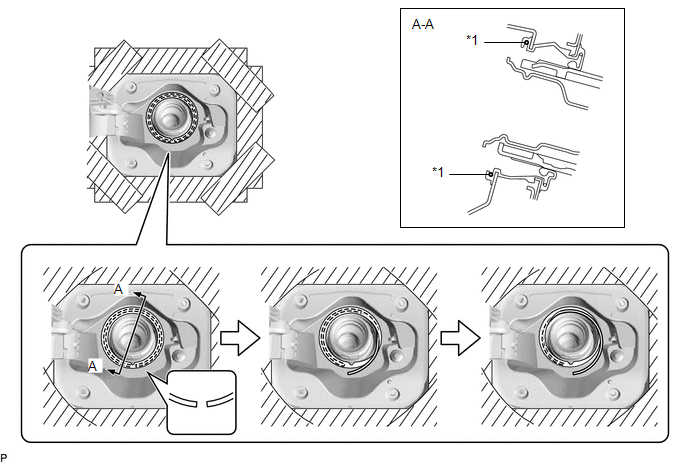

    1. Remove the fuel inlet box ring as shown in the illustration.
      GTY667269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Inlet Box Ring - -

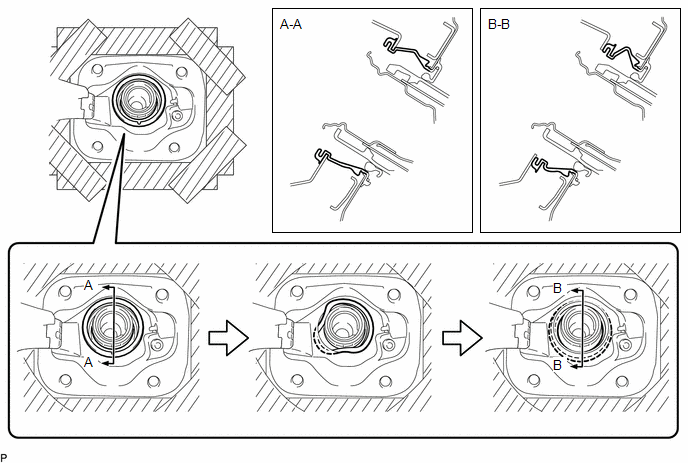

    2. Remove the fuel tank filler pipe shield as shown in the illustration.
      GTY626934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

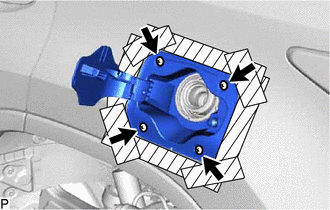

    3. Remove the 4 screws.
      GTY623240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

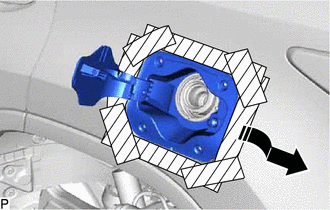

    4. Remove the fuel filler opening lid sub-assembly as shown in the illustration.
      GTY630599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

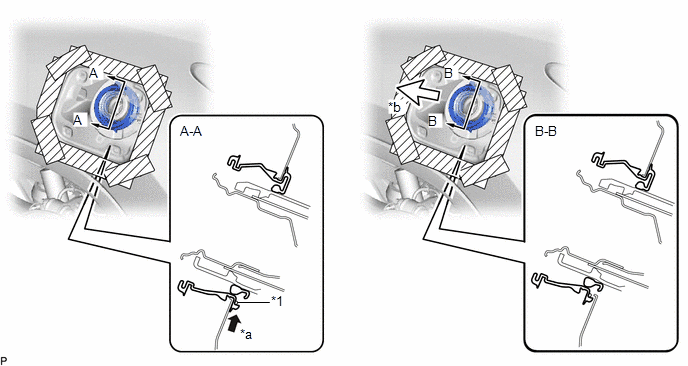

    5. Push the fuel tank filler pipe shield and fuel inlet box ring as shown in the illustration.
      GTY661786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Inlet Box Ring - -
      *a Push *b Pull
    6. Pull the fuel tank filler pipe shield and fuel inlet box ring as shown in the illustration to remove them as a set.

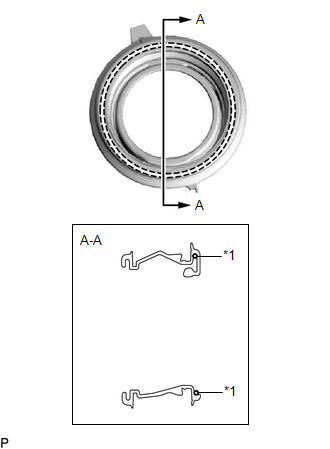

    7. Remove the fuel inlet box ring from the fuel tank filler pipe shield.
      GTY669289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Inlet Box Ring
