Components [09/2015 - ]

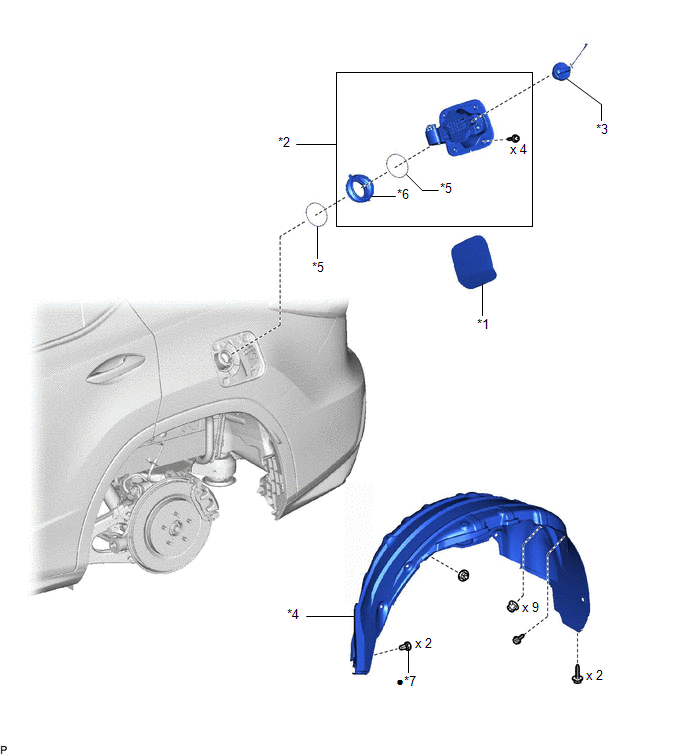

Fig 1: Fuel Lid Opener Unit Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FUEL FILLER OPENING LID ASSEMBLY	*2	FUEL FILLER OPENING LID SUB-ASSEMBLY
*3	FUEL TANK CAP ASSEMBLY	*4	REAR WHEEL HOUSE LINER LH
*5	FUEL INLET BOX RING	*6	FUEL TANK FILLER PIPE SHIELD
*7	GROMMET	-	-
•	Non-reusable part	-	-

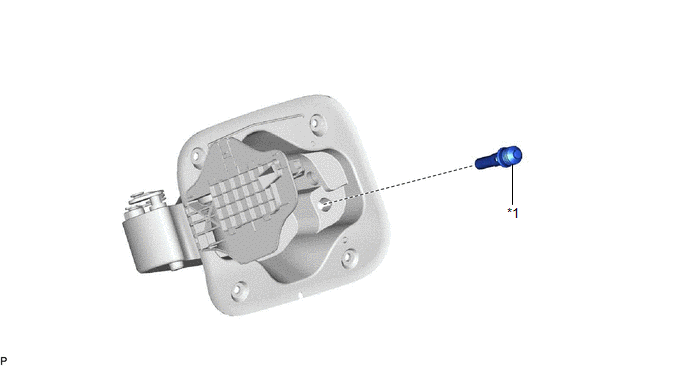

Fig 2: Fuel Lid Opener Unit Replacement Components (2 Of 2)

PUSH LIFTER
