Inspection [09/2015 - ]: Procedure
- INSPECT FUEL LID LOCK WITH MOTOR ASSEMBLY
- Check the operation of the fuel lid lock with motor assembly.
- Apply battery voltage to the fuel lid lock with motor assembly connector, and check that the fuel lid lock with motor assembly operates smoothly as follows.
OK
Connection Specified Condition Battery positive (+) → Terminal 1
Battery negative (-) → Terminal 2Unlock Battery positive (+) → Terminal 2
Battery negative (-) → Terminal 1Lock If the result is not as specified, replace the fuel lid lock with motor assembly.

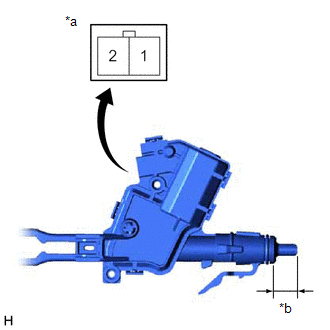

*a Component without harness connected
(Fuel Lid Lock with Motor Assembly)*b Shaft Stroke - Measure the shaft stroke.
OK
Area Condition Specified Condition Shaft stroke Lock 11 +/- 1.4 mm
(0.433 +/- 0.055 in.)Unlock 0 mm
(0 in.)If the result is not as specified, replace the fuel lid lock with motor assembly.
