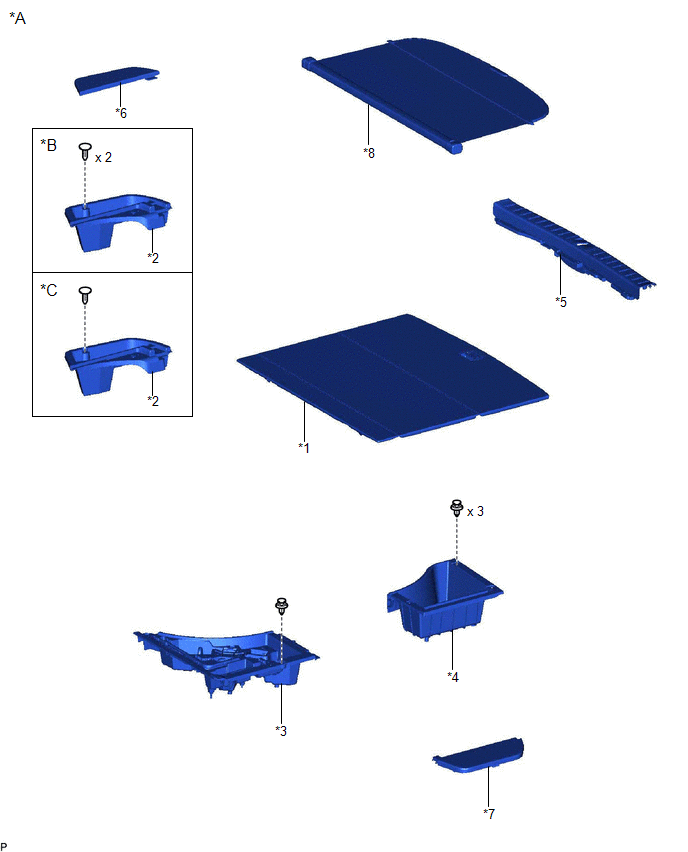

Components [12/2017 - ]
| *A | w/o Rear No. 2 Seat | *B | for TMC Made |
| *C | for TMMC Made | - | - |
| *1 | DECK BOARD ASSEMBLY | *2 | DECK SIDE TRIM BOX RH |
| *3 | FRONT DECK FLOOR BOX | *4 | REAR DECK FLOOR BOX |
| *5 | REAR FLOOR FINISH PLATE | *6 | REAR NO. 3 FLOOR BOARD |
| *7 | REAR NO. 4 FLOOR BOARD | *8 | TONNEAU COVER ASSEMBLY |

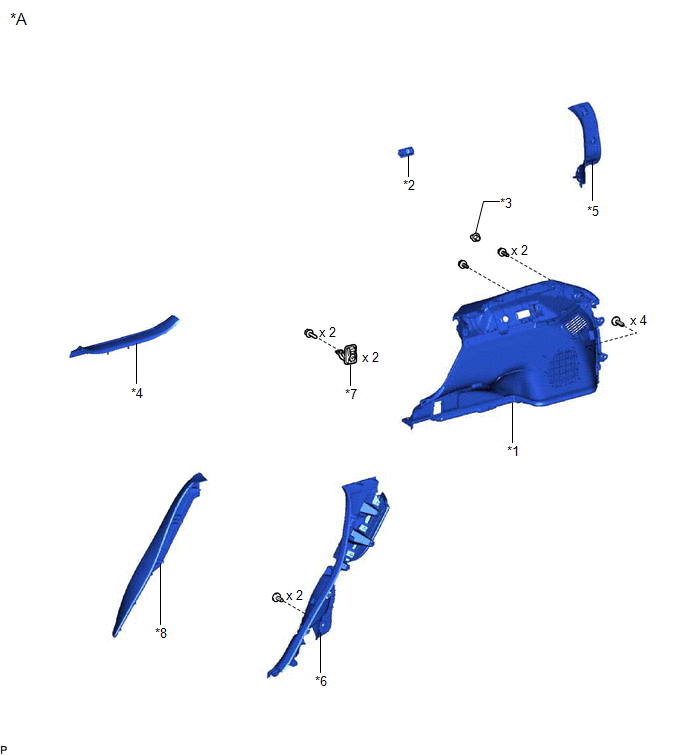

| *A | w/o Rear No. 2 Seat | - | - |
| *1 | DECK TRIM SIDE PANEL ASSEMBLY LH | *2 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
| *3 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK | *4 | REAR DOOR SCUFF PLATE LH |
| *5 | REAR FLOOR FINISH SIDE PLATE LH | *6 | REAR SEAT SIDE GARNISH LH |
| *7 | ROPE HOOK ASSEMBLY | *8 | UPPER QUARTER TRIM PAD LH |

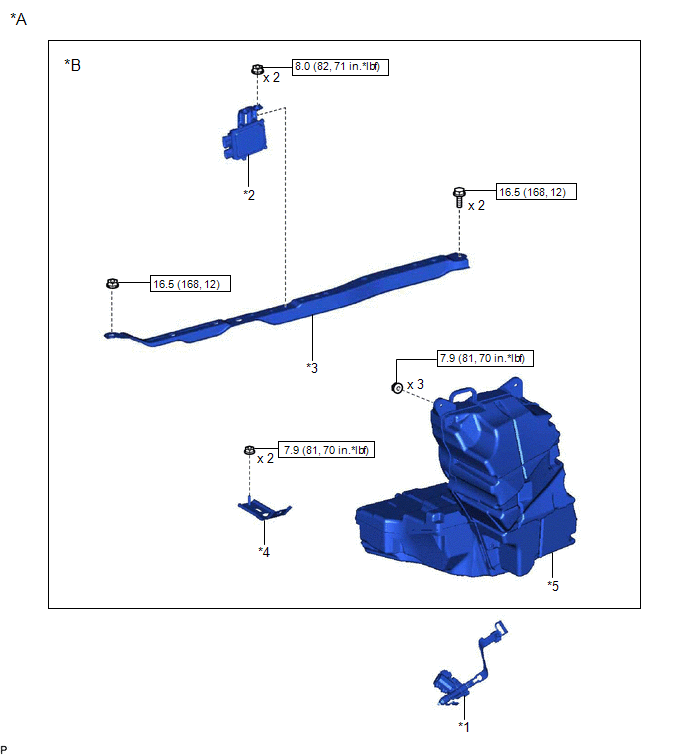

Fig 3: Fuel Lid Opener Motor Assembly Replacement Components With Torque Specifications [12/2017 - ] (3 Of 4)
| Callout | Description | Callout | Description |
| *A | w/o Rear No. 2 Seat | *B | w/ Woofer |
| *1 | FUEL LID LOCK WITH MOTOR ASSEMBLY | *2 | FUEL PUMP CONTROL ECU ASSEMBLY |
| *3 | NO. 2 DECK BOARD REINFORCEMENT | *4 | REAR NO. 1 SPEAKER BRACKET |
| *5 | REAR NO. 3 SPEAKER ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

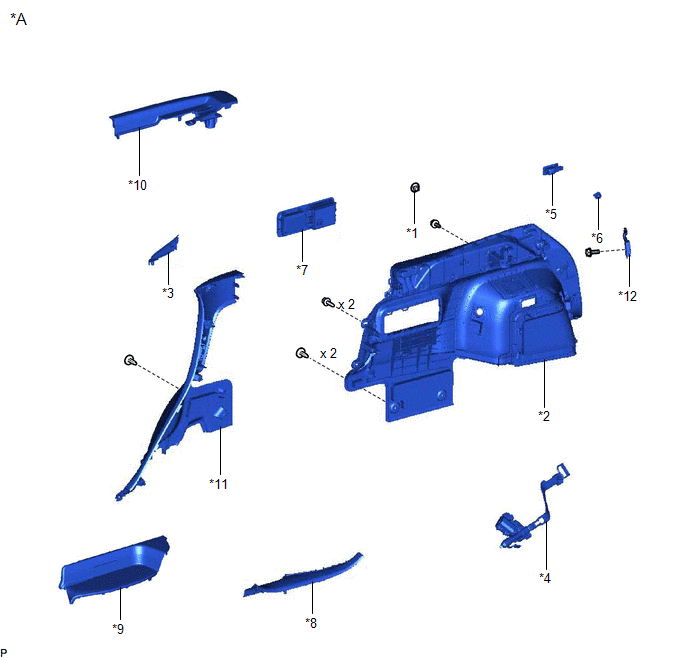

| *A | w/ Rear No. 2 Seat | - | - |
| *1 | COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR | *2 | DECK TRIM SIDE PANEL ASSEMBLY LH |
| *3 | FRONT DECK SIDE TRIM COVER LH | *4 | FUEL LID LOCK WITH MOTOR ASSEMBLY |
| *5 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY | *6 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK |
| *7 | NO. 2 AIR CONDITIONING CONTROL ASSEMBLY | *8 | REAR DOOR INSIDE SCUFF PLATE LH |
| *9 | REAR DOOR SCUFF PLATE LH | *10 | REAR SEAT OUTER TRACK BRACKET COVER LH |
| *11 | REAR SEAT SIDE GARNISH LH | *12 | ROPE HOOK ASSEMBLY |
