Components [12/2017 - 08/2019]

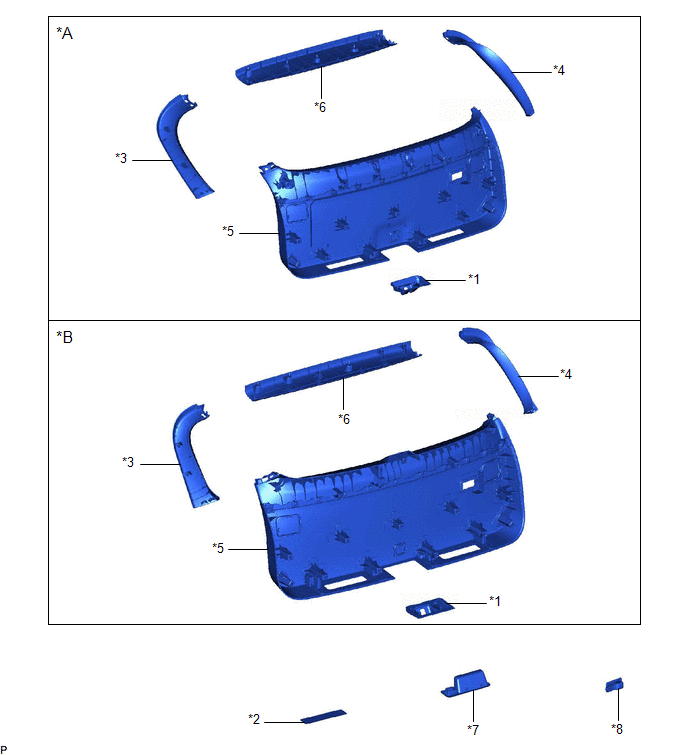

| *A | w/o Rear No. 2 Seat | *B | w/ Rear No. 2 Seat |
| *1 | BACK DOOR LOCK COVER | *2 | BACK DOOR TRIM BASE |
| *3 | BACK DOOR TRIM COVER LH | *4 | BACK DOOR TRIM COVER RH |
| *5 | BACK DOOR TRIM PANEL ASSEMBLY | *6 | BACK WINDOW UPPER PANEL TRIM |
| *7 | DOOR PULL HANDLE | *8 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |

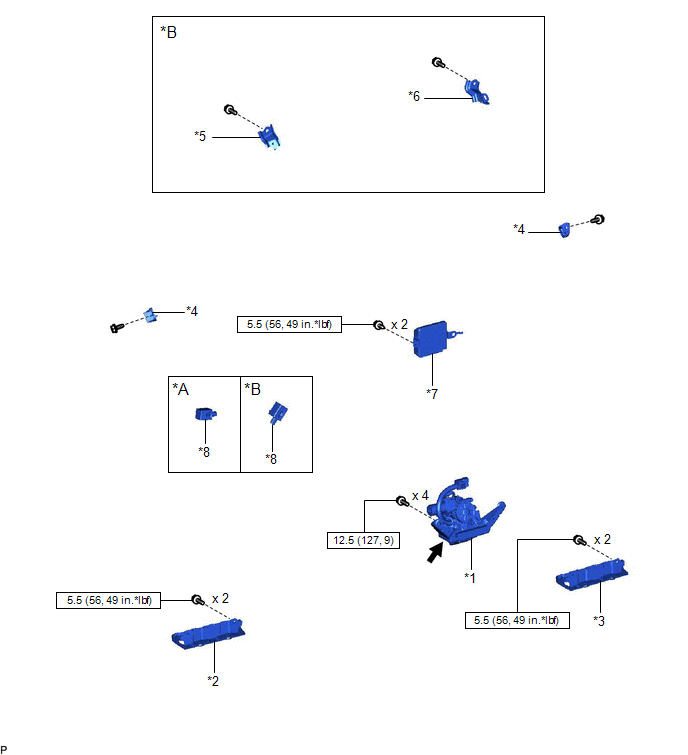

| Callout | Description | Callout | Description |
| *A | w/o Rear No. 2 Seat | *B | w/ Rear No. 2 Seat |
| *1 | BACK DOOR LOCK ASSEMBLY | *2 | BACK DOOR LOWER STAY REINFORCEMENT LH |
| *3 | BACK DOOR LOWER STAY REINFORCEMENT RH | *4 | BACK DOOR LOWER STOPPER |
| *5 | BACK DOOR STAY REINFORCEMENT LH | *6 | BACK DOOR STAY REINFORCEMENT RH |
| *7 | MULTIPLEX NETWORK DOOR ECU | *8 | POWER BACK DOOR WARNING BUZZER |
| N*m (kgf*cm, ft.*lbf): Specified torque | MP grease |
| Callout | Description | Callout | Description |

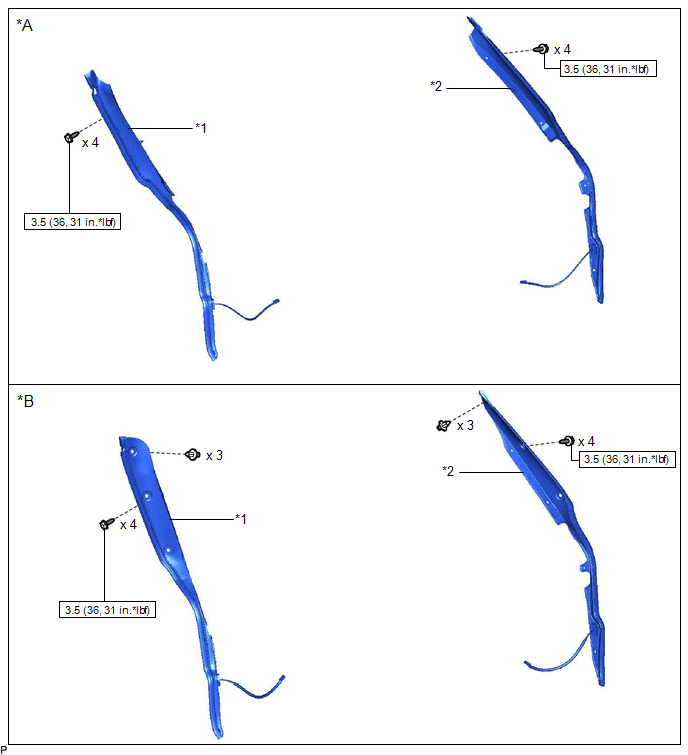

| *A | w/o Rear No. 2 Seat | *B | w/ Rear No. 2 Seat |
| *1 | POWER BACK DOOR SENSOR ASSEMBLY LH | *2 | POWER BACK DOOR SENSOR ASSEMBLY RH |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

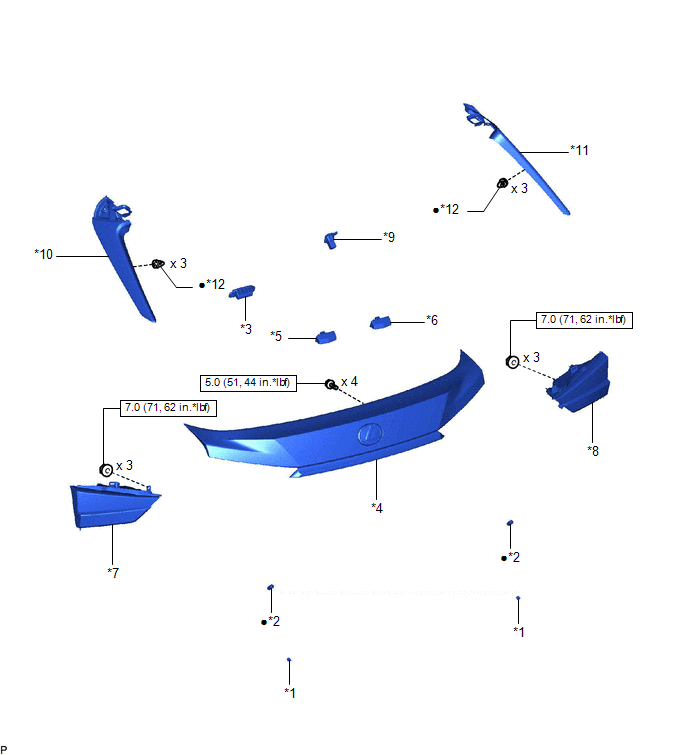

| Callout | Description | Callout | Description |
| *1 | BACK DOOR DUST PROOF SEAL | *2 | BACK DOOR LOWER STOPPER CUSHION |
| *3 | BACK DOOR OPENER SWITCH ASSEMBLY | *4 | BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY |
| *5 | LICENSE PLATE LIGHT ASSEMBLY LH | *6 | LICENSE PLATE LIGHT ASSEMBLY RH |
| *7 | REAR LIGHT ASSEMBLY LH | *8 | REAR LIGHT ASSEMBLY RH |
| *9 | REAR TELEVISION CAMERA ASSEMBLY | *10 | SIDE REAR SPOILER PROTECTOR SUB-ASSEMBLY LH |
| *11 | SIDE REAR SPOILER PROTECTOR SUB-ASSEMBLY RH | *12 | CLIP |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
| Callout | Description | Callout | Description |
| *1 | POWER BACK DOOR UNIT SET ASSEMBLY LH | *2 | POWER BACK DOOR UNIT SET ASSEMBLY RH |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | - | - |
