Adjustment [12/2017 - ]: Procedure

  1. INSPECT BACK DOOR (w/o Rear No. 2 Seat)
    1. Check that the clearance measurements of areas a through g are within each standard range.
      GTY615509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD CLEARANCE

      Area Measurement Area Measurement
      a 5.95 to 9.95 mm (0.234 to 0.392 in.) b -1.15 to 2.85 mm (-0.0453 to 0.112 in.)
      c 5.95 to 9.95 mm (0.234 to 0.392 in.) d -1.15 to 2.85 mm (-0.0453 to 0.112 in.)
      e 3.15 to 7.15 mm (0.124 to 0.281 in.) f 3.85 to 6.85 mm (0.152 to 0.270 in.)
      g 4.55 to 8.55 mm (0.179 to 0.337 in.) - -
  2. INSPECT BACK DOOR (w/ Rear No. 2 Seat)

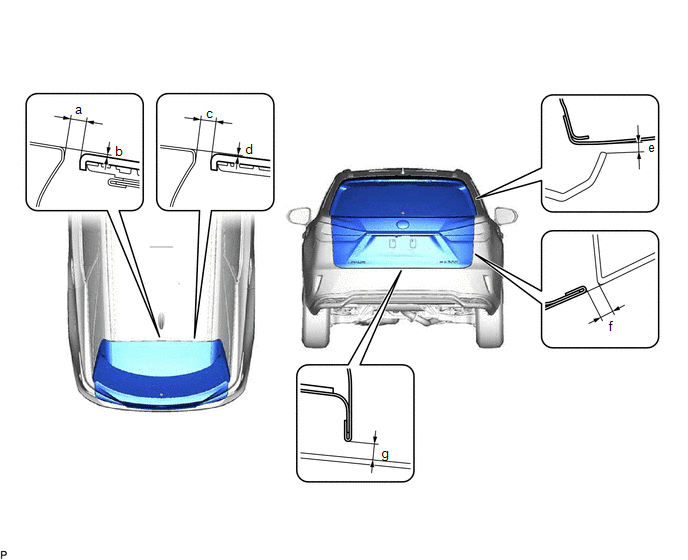

    1. Check that the clearance measurements of areas a through g are within each standard range.
      GTY829682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD CLEARANCE

      Area Measurement Area Measurement
      a 5.95 to 9.95 mm (0.234 to 0.392 in.) b -1.15 to 2.85 mm (-0.0453 to 0.112 in.)
      c 5.95 to 9.95 mm (0.234 to 0.392 in.) d -1.15 to 2.85 mm (-0.0453 to 0.112 in.)
      e 2.35 to 6.35 mm (0.0925 to 0.250 in.) f 3.85 to 6.85 mm (0.152 to 0.270 in.)
      g 3.55 to 7.55 mm (0.140 to 0.297 in.) - -
  3. REMOVE TONNEAU COVER ASSEMBLY (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 1 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 1 [08/2019 - ]

  4. REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 2 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 2 [08/2019 - ]

  5. REMOVE REAR NO. 3 FLOOR BOARD (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 3 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 3 [08/2019 - ]

  6. REMOVE REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 4 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 4 [08/2019 - ]

  7. REMOVE REAR NO. 4 FLOOR BOARD (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 5 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 5 [08/2019 - ]

  8. REMOVE FRONT DECK FLOOR BOX (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 6 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 6 [08/2019 - ]

  9. REMOVE DECK SIDE TRIM BOX RH (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 7 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 7 [08/2019 - ]

  10. REMOVE REAR FLOOR FINISH PLATE (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 8 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 8 [08/2019 - ]

  11. REMOVE TONNEAU COVER ASSEMBLY (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 1 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 1 [08/2019 - ]

  12. REMOVE DECK BOARD ASSEMBLY (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 2 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 2 [08/2019 - ]

  13. REMOVE REAR NO. 4 FLOOR BOARD (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 3 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 3 [08/2019 - ]

  14. REMOVE DECK SIDE TRIM BOX LH (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 4 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 4 [08/2019 - ]

  15. REMOVE NO. 1 DECK BOARD (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 5 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 5 [08/2019 - ]

  16. DISCONNECT REAR NO. 2 SEAT ASSEMBLY (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 6 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 6 [08/2019 - ]

  17. REMOVE REAR DECK FLOOR BOX (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 7 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 7 [08/2019 - ]

  18. REMOVE FRONT DECK FLOOR BOX (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 8 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 8 [08/2019 - ]

  19. REMOVE REAR FLOOR FINISH PLATE (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 9 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 9 [08/2019 - ]

  20. ADJUST BACK DOOR
    1. Before adjusting the upper end of the back door up and down or left and right, loosen the 4 hinge bolts on the vehicle body.
      GTY639014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the 4 hinge bolts on the vehicle body after adjustment.

      Torque: 19.5 N*m (199 kgf*cm, 14 ft.*lbf)

    3. Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.
      GTY639136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a brass bar and a hammer, hit the striker to adjust its position.
    5. Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.

      Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)

  21. INSTALL REAR FLOOR FINISH PLATE (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 49

  22. INSTALL DECK SIDE TRIM BOX RH (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 50

  23. INSTALL FRONT DECK FLOOR BOX (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 51

  24. INSTALL REAR NO. 4 FLOOR BOARD (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 52

  25. INSTALL REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 53

  26. INSTALL REAR NO. 3 FLOOR BOARD (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 54

  27. INSTALL DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 55

  28. INSTALL TONNEAU COVER ASSEMBLY (w/o Rear No. 2 Seat)

    Refer to PROCEDURE - Step 56

  29. INSTALL REAR FLOOR FINISH PLATE (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 55

  30. INSTALL FRONT DECK FLOOR BOX (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 56

  31. INSTALL REAR DECK FLOOR BOX (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 57

  32. CONNECT REAR NO. 2 SEAT ASSEMBLY (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 58

  33. INSTALL NO. 1 DECK BOARD (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 59

  34. INSTALL DECK SIDE TRIM BOX LH (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 60

  35. INSTALL REAR NO. 4 FLOOR BOARD (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 61

  36. INSTALL DECK BOARD ASSEMBLY (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 62

  37. INSTALL TONNEAU COVER ASSEMBLY (w/ Rear No. 2 Seat)

    Refer to PROCEDURE - Step 63
