Adjustment [09/2015 - 12/2017]: Procedure

INSPECT BACK DOOR

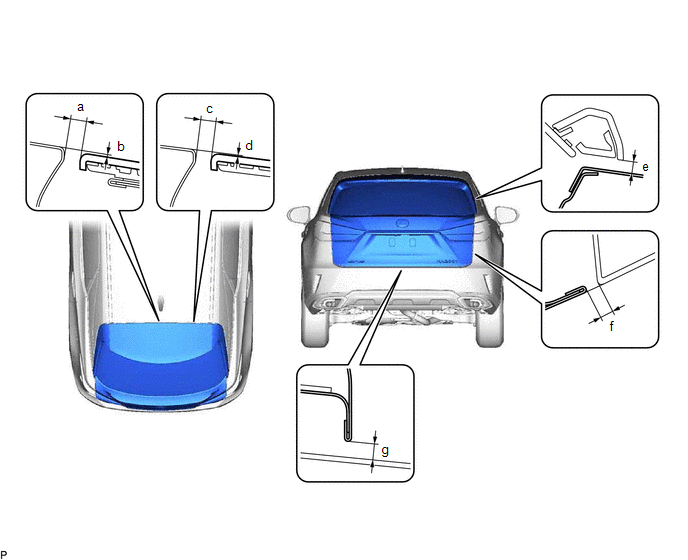

Check that the clearance measurements of areas a through g are within each standard range.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STANDARD CLEARANCE

Area	Measurement	Area	Measurement
a	5.95 to 9.95 mm (0.234 to 0.392 in.)	b	-1.15 to 2.85 mm (-0.0453 to 0.112 in.)
c	5.95 to 9.95 mm (0.234 to 0.392 in.)	d	-1.15 to 2.85 mm (-0.0453 to 0.112 in.)
e	3.15 to 7.15 mm (0.124 to 0.281 in.)	f	3.85 to 6.85 mm (0.152 to 0.270 in.)
g	4.55 to 8.55 mm (0.179 to 0.337 in.)	-	-

REMOVE TONNEAU COVER ASSEMBLY
Refer to PROCEDURE - Step 1 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 1 [08/2016 - 12/2017]
REMOVE DECK BOARD ASSEMBLY
Refer to PROCEDURE - Step 2 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 2 [08/2016 - 12/2017]
REMOVE REAR NO. 3 FLOOR BOARD
Refer to PROCEDURE - Step 3 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 3 [08/2016 - 12/2017]
REMOVE REAR DECK FLOOR BOX
Refer to PROCEDURE - Step 4 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 4 [08/2016 - 12/2017]
REMOVE REAR NO. 4 FLOOR BOARD
Refer to PROCEDURE - Step 5 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 5 [08/2016 - 12/2017]
REMOVE FRONT DECK FLOOR BOX
Refer to PROCEDURE - Step 6 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 6 [08/2016 - 12/2017]
REMOVE DECK SIDE TRIM BOX RH
Refer to PROCEDURE - Step 7 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 7 [08/2016 - 12/2017]
REMOVE REAR FLOOR FINISH PLATE
Refer to PROCEDURE - Step 8 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 8 [08/2016 - 12/2017]

ADJUST BACK DOOR

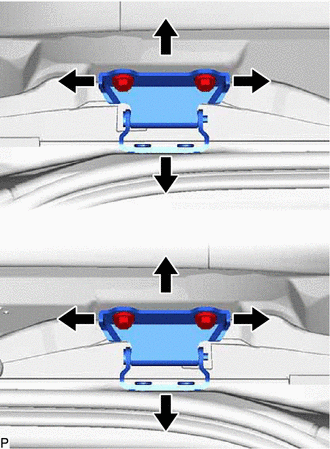

Before adjusting the upper end of the back door up and down or left and right, loosen the 4 hinge bolts on the vehicle body.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Tighten the 4 hinge bolts on the vehicle body after adjustment.
Torque: 19.5 N*m (199 kgf*cm, 14 ft.*lbf)

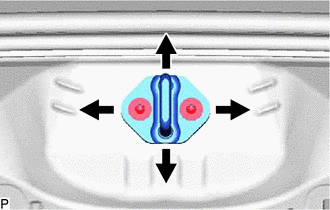

Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.

Using a brass bar and a hammer, hit the striker to adjust its position.
Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.
Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)
