Removal [09/2015 - ]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [09/2015 - 12/2017] , or refer to REMOVAL [12/2017 - 08/2019] , or refer to REMOVAL [08/2019 - ]

  2. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

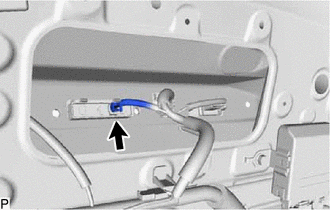

    1. Disconnect the connector.
      GTY623271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

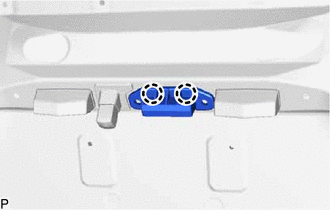

    2. Disengage the 2 claws to remove the back door opener switch assembly.
      GTY623270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
