Components [12/2017 - ]

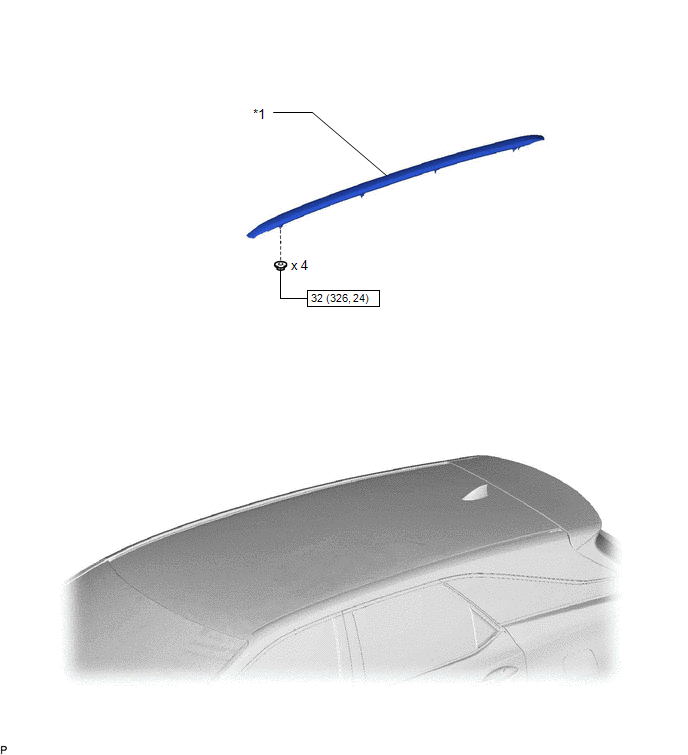

Fig 1: Roof Rack (W/ Rear No. 2 Seat) Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	ROOF RACK ASSEMBLY LH	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

Fig 2: Roof Rack (W/ Rear No. 2 Seat) Replacement Components (2 Of 2)

*1	FRONT ROOF RACK LEG CUSHION LH	*2	FRONT ROOF RACK RETAINER LH
*3	NO. 1 ROOF CARRIER PROTECTOR	*4	NO. 2 ROOF CARRIER PROTECTOR
*5	REAR ROOF RACK LEG CUSHION LH	*6	ROOF CARRIER SEAL
•	Non-reusable part	-	-
