Components [09/2015 - 08/2019]

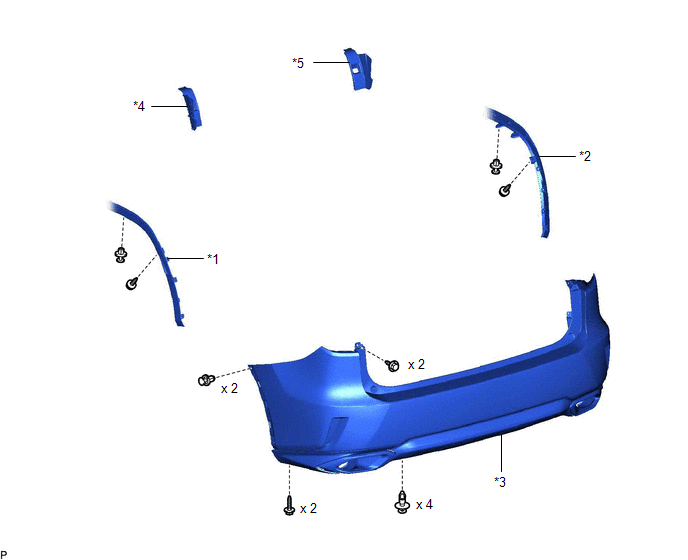

Fig 1: Rear Bumper (W/O Rear No. 2 Seat) Replacement Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH	*2	QUARTER OUTSIDE MOULDING SUB-ASSEMBLY RH
*3	REAR BUMPER ASSEMBLY	*4	REAR LIGHT COVER LH
*5	REAR LIGHT COVER RH	-	-

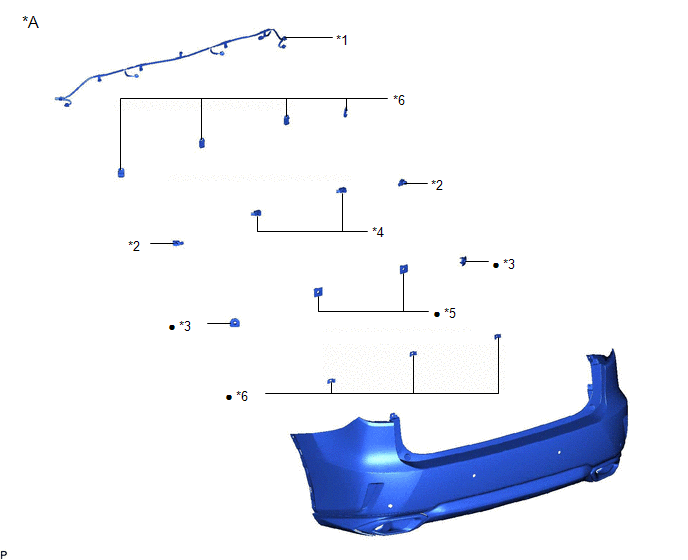

Fig 2: Rear Bumper (W/O Rear No. 2 Seat) Replacement Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Intuitive Parking Assist System	-	-
*1	NO. 3 LUGGAGE ROOM WIRE	*2	NO. 3 ULTRASONIC SENSOR
*3	NO. 3 ULTRASONIC SENSOR RETAINER	*4	NO. 4 ULTRASONIC SENSOR
*5	NO. 4 ULTRASONIC SENSOR RETAINER	*6	ULTRASONIC SENSOR CLIP
•	Non-reusable part	-	-

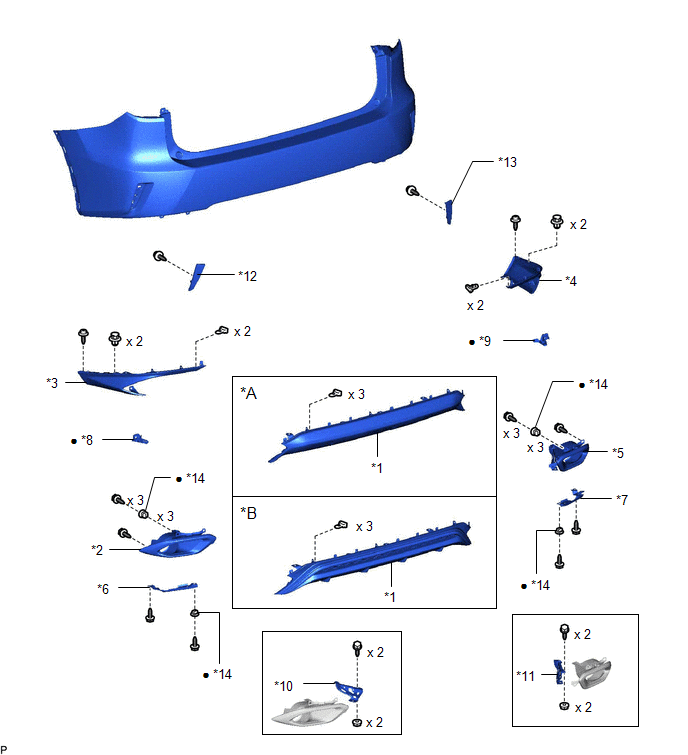

Fig 3: Rear Bumper (W/O Rear No. 2 Seat) Replacement Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Bar Type Radiator Grille	*B	for Mesh Type Radiator Grille
*1	CENTER REAR BUMPER EXTENSION SUB-ASSEMBLY	*2	REAR BUMPER EXTENSION LH
*3	REAR BUMPER EXTENSION RETAINER LH	*4	REAR BUMPER EXTENSION RETAINER RH
*5	REAR BUMPER EXTENSION RH	*6	REAR BUMPER PLATE LH
*7	REAR BUMPER PLATE RH	*8	REAR BUMPER SEAL BRACKET LH
*9	REAR BUMPER SEAL BRACKET RH	*10	REAR BUMPER SIDE MOUNTING BRACKET LH
*11	REAR BUMPER SIDE MOUNTING BRACKET RH	*12	REFLEX REFLECTOR ASSEMBLY LH
*13	REFLEX REFLECTOR ASSEMBLY RH	*14	GROMMET
•	Non-reusable part	-	-

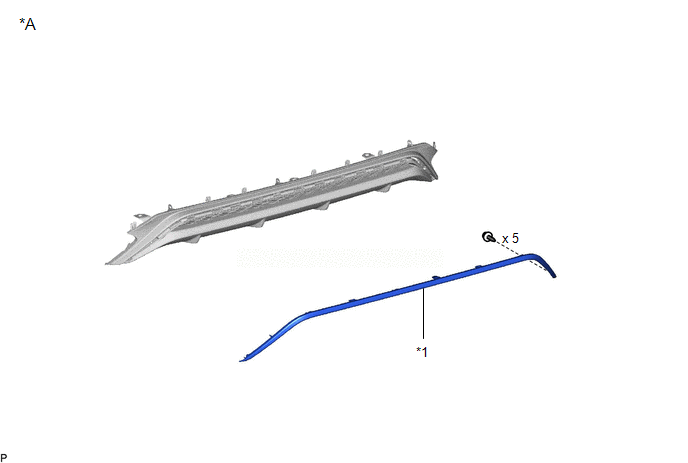

Fig 4: Rear Bumper (W/O Rear No. 2 Seat) Replacement Components (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Mesh Type Radiator Grille	-	-
*1	REAR BUMPER MOULDING	-	-

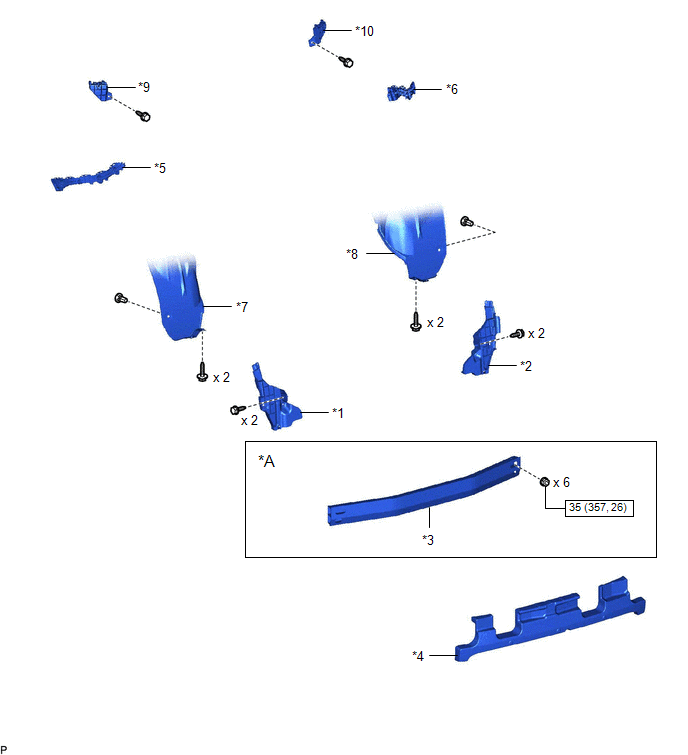

Fig 5: Rear Bumper (W/O Rear No. 2 Seat) Replacement Components With Torque Specifications (5 Of 6)

Callout	Description	Callout	Description
*A	w/o Towing Hitch	-	-
*1	LOWER REAR BUMPER RETAINER LH	*2	LOWER REAR BUMPER RETAINER RH
*3	NO. 1 REAR BUMPER REINFORCEMENT	*4	REAR BUMPER ENERGY ABSORBER
*5	REAR BUMPER SIDE RETAINER LH	*6	REAR BUMPER SIDE RETAINER RH
*7	REAR WHEEL HOUSE LINER LH	*8	REAR WHEEL HOUSE LINER RH
*9	UPPER REAR BUMPER RETAINER LH	*10	UPPER REAR BUMPER RETAINER RH
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

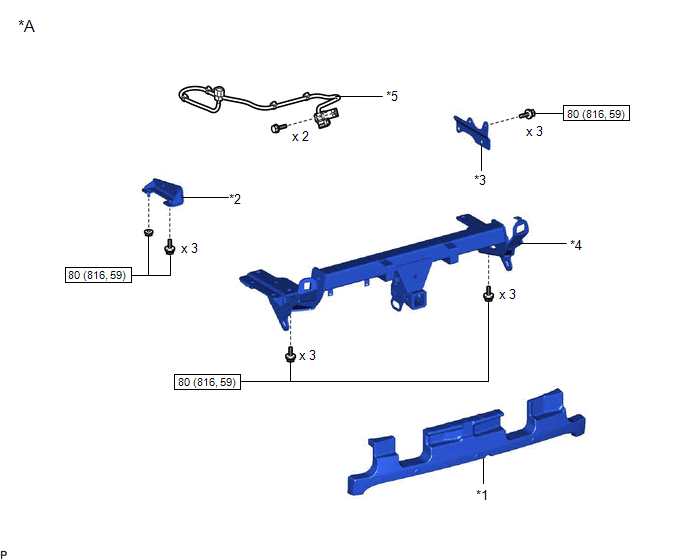

Fig 6: Rear Bumper (W/O Rear No. 2 Seat) Replacement Components With Torque Specifications (6 Of 6)

Callout	Description	Callout	Description
*A	w/ Towing Hitch	-	-
*1	REAR BUMPER ENERGY ABSORBER	*2	RECEIVER HITCH BRACKET LH
*3	RECEIVER HITCH BRACKET RH	*4	RECEIVER HITCH BRACKET SUB-ASSEMBLY
*5	TOWING SOCKET	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
