Components [12/2017 - 08/2019]

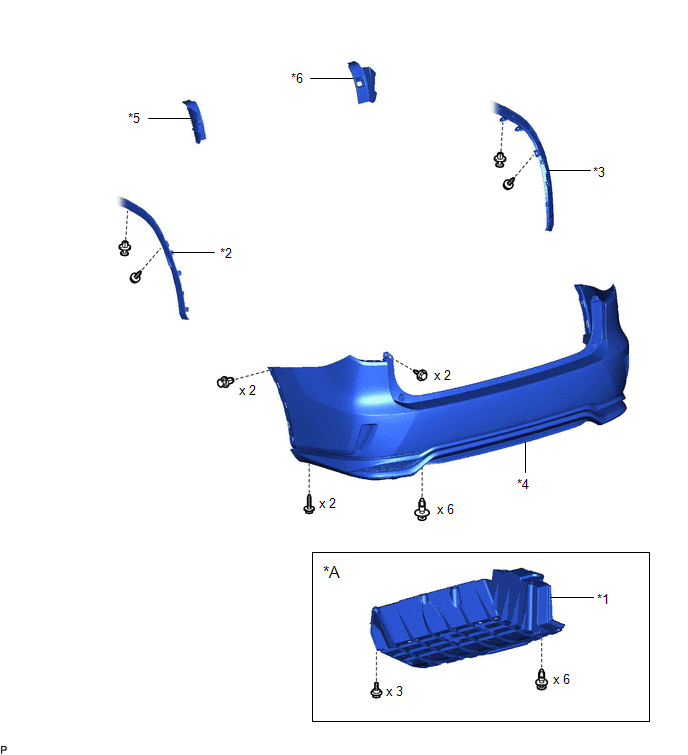

Fig 1: Rear Bumper (W/ Rear No. 2 Seat) Replacement Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Spare Tire	-	-
*1	LUGGAGE COMPARTMENT SIDE COVER LH	*2	QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH
*3	QUARTER OUTSIDE MOULDING SUB-ASSEMBLY RH	*4	REAR BUMPER ASSEMBLY
*5	REAR LIGHT COVER LH	*6	REAR LIGHT COVER RH

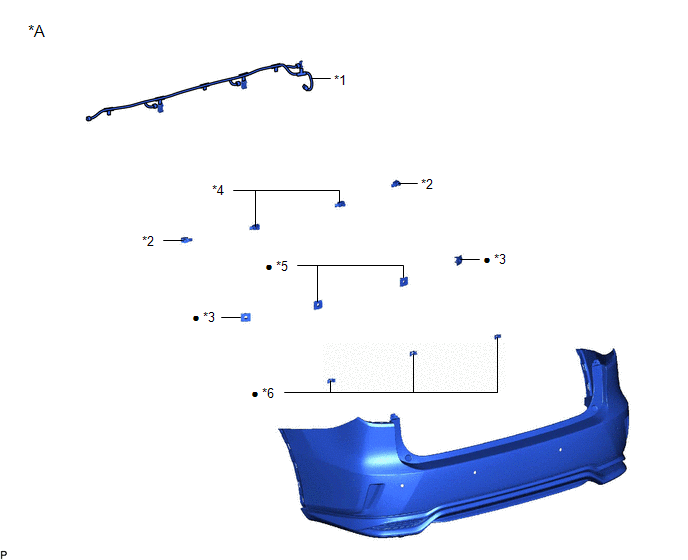

Fig 2: Rear Bumper (W/ Rear No. 2 Seat) Replacement Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Intuitive Parking Assist System	-	-
*1	NO. 3 LUGGAGE ROOM WIRE	*2	NO. 3 ULTRASONIC SENSOR
*3	NO. 3 ULTRASONIC SENSOR RETAINER	*4	NO. 4 ULTRASONIC SENSOR
*5	NO. 4 ULTRASONIC SENSOR RETAINER	*6	ULTRASONIC SENSOR CLIP
•	Non-reusable part	-	-

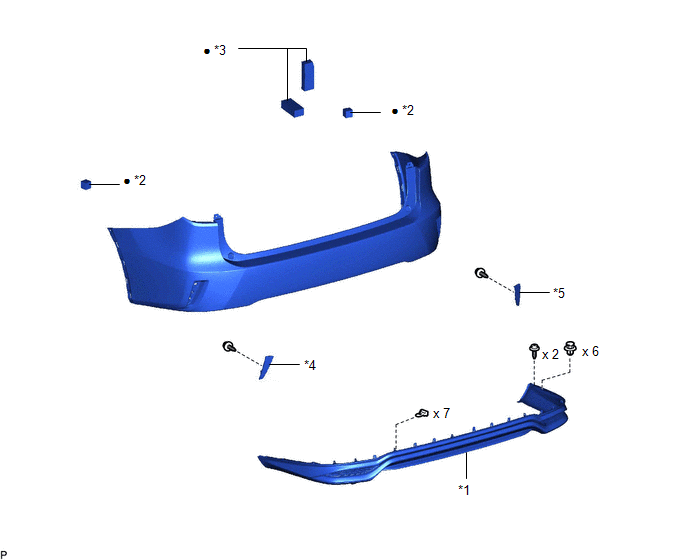

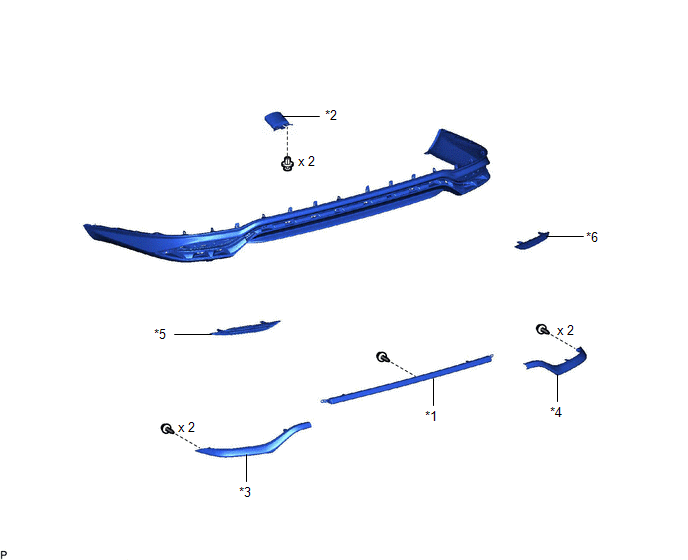

Fig 3: Rear Bumper (W/ Rear No. 2 Seat) Replacement Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR BUMPER LOWER COVER	*2	REAR BUMPER PAD
*3	REAR BUMPER PROTECTOR	*4	REFLEX REFLECTOR ASSEMBLY LH
*5	REFLEX REFLECTOR ASSEMBLY RH	-	-
•	Non-reusable part	-	-

Fig 4: Rear Bumper (W/ Rear No. 2 Seat) Replacement Components (4 Of 5)

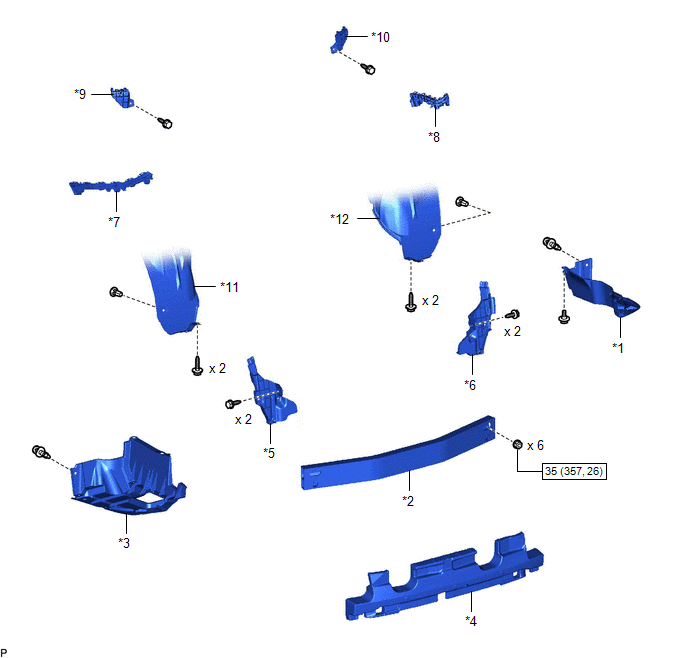

Fig 5: Rear Bumper (W/ Rear No. 2 Seat) Replacement Components With Torque Specifications (5 Of 5)

Callout	Description	Callout	Description
*1	NO. 1 LUGGAGE COMPARTMENT SIDE PROTECTOR COVER	*2	NO. 1 REAR BUMPER REINFORCEMENT
*3	NO. 2 LUGGAGE COMPARTMENT SIDE PROTECTOR COVER	*4	REAR BUMPER ENERGY ABSORBER
*5	REAR BUMPER LOWER RETAINER LH	*6	REAR BUMPER LOWER RETAINER RH
*7	REAR BUMPER SIDE RETAINER LH	*8	REAR BUMPER SIDE RETAINER RH
*9	REAR BUMPER UPPER RETAINER LH	*10	REAR BUMPER UPPER RETAINER RH
*11	REAR WHEEL HOUSE LINER LH	*12	REAR WHEEL HOUSE LINER RH
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
