Components [08/2019 - ]

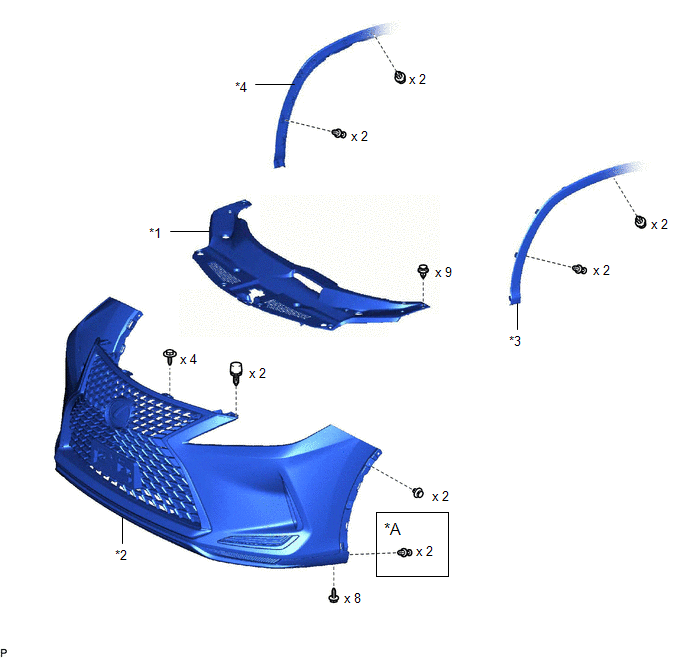

Fig 1: Front Bumper Replacement Components (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for TMMC Made	-	-
*1	COOL AIR INTAKE DUCT SEAL	*2	FRONT BUMPER ASSEMBLY
*3	FRONT FENDER MOULDING SUB-ASSEMBLY LH	*4	FRONT FENDER MOULDING SUB-ASSEMBLY RH

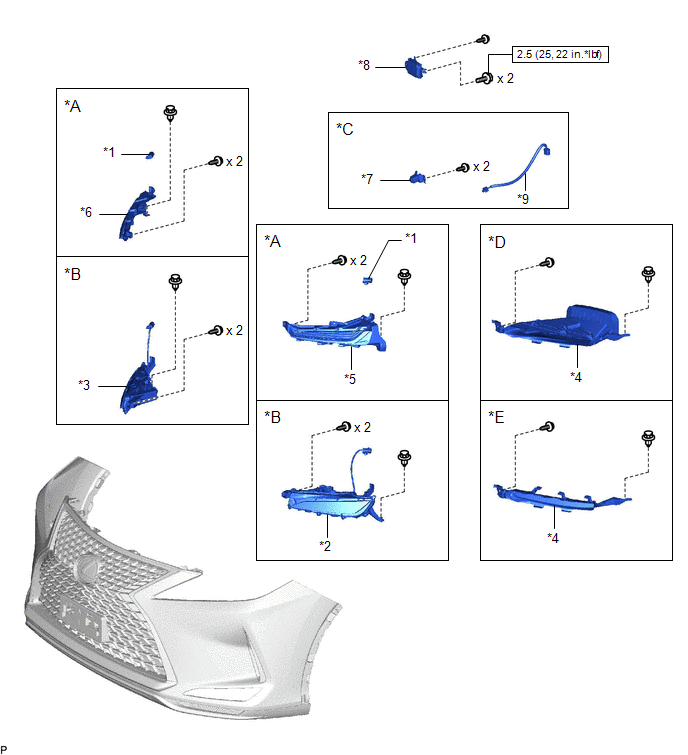

Fig 2: Front Bumper Replacement Components With Torque Specifications (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o Fog Light	*B	w/ Fog Light
*C	w/ Panoramic View Monitor System	*D	for Type A
*E	for Type B	-	-
*1	CONNECTOR COVER	*2	FOG LIGHT ASSEMBLY LH
*3	FOG LIGHT ASSEMBLY RH	*4	FRONT BUMPER ARM HOLE COVER LH
*5	FRONT BUMPER HOLE COVER ASSEMBLY LH	*6	FRONT BUMPER HOLE COVER ASSEMBLY RH
*7	FRONT TELEVISION CAMERA ASSEMBLY	*8	MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*9	TELEVISION CAMERA WIRE	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

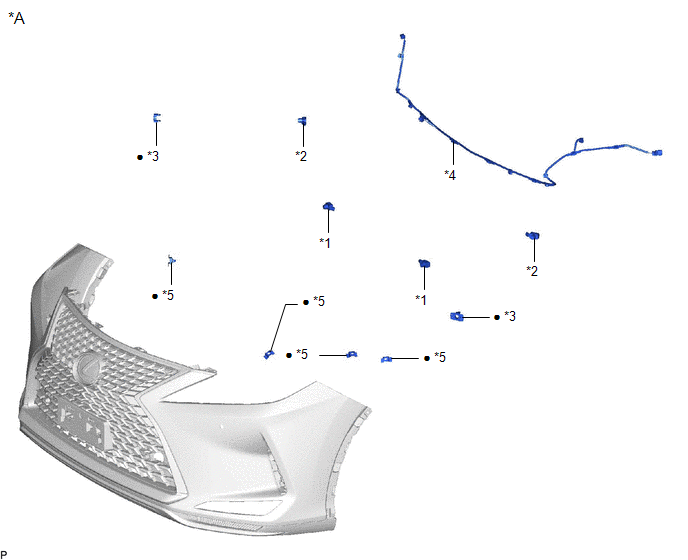

Fig 3: Front Bumper Replacement Components (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Intuitive Parking Assist System	-	-
*1	FRONT CENTER ULTRASONIC SENSOR	*2	FRONT CORNER ULTRASONIC SENSOR
*3	FRONT CORNER ULTRASONIC SENSOR RETAINER	*4	NO. 4 ENGINE ROOM WIRE
*5	ULTRASONIC SENSOR CLIP	-	-
•	Non-reusable part	-	-

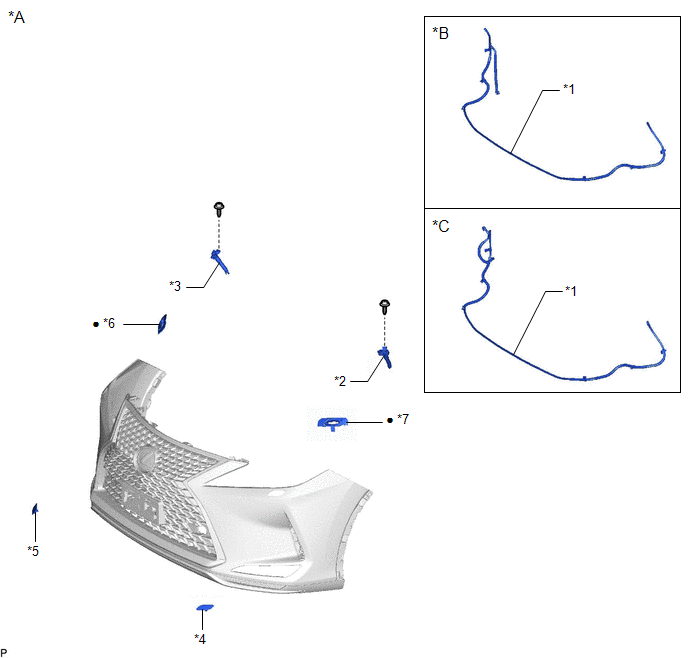

Fig 4: Front Bumper Replacement Components (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Headlight Cleaner System	*B	for TMC Made
*C	for TMMC Made	-	-
*1	HEADLIGHT CLEANER HOSE	*2	HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH
*3	HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH	*4	HEADLIGHT WASHER COVER LH
*5	HEADLIGHT WASHER COVER RH	*6	NO. 1 WASHER BRACKET
*7	NO. 2 WASHER BRACKET	-	-
•	Non-reusable part	-	-

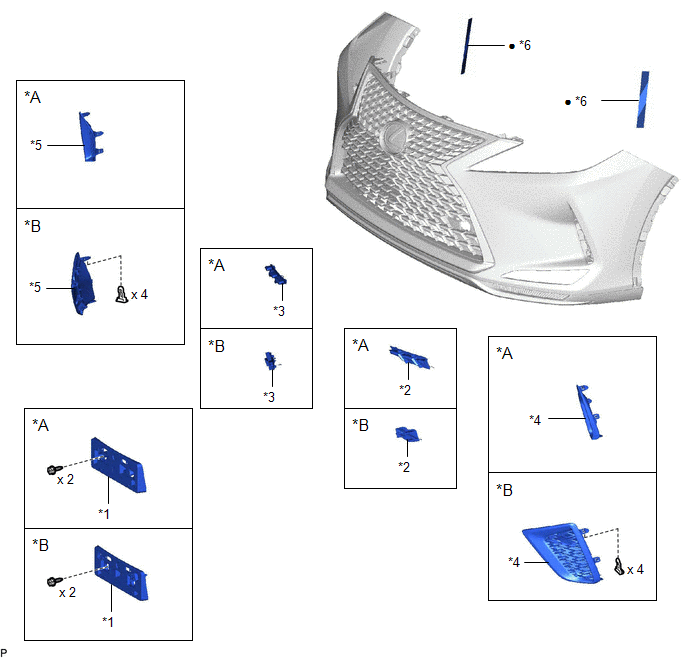

Fig 5: Front Bumper Replacement Components (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	except F-Sport	*B	for F-Sport
*1	FRONT BUMPER EXTENSION MOUNTING BRACKET	*2	FRONT BUMPER HOLE COVER LH
*3	FRONT BUMPER HOLE COVER RH	*4	LOWER SIDE RADIATOR GRILLE LH
*5	LOWER SIDE RADIATOR GRILLE RH	*6	NO. 1 MOULDING TAPE
•	Non-reusable part	-	-

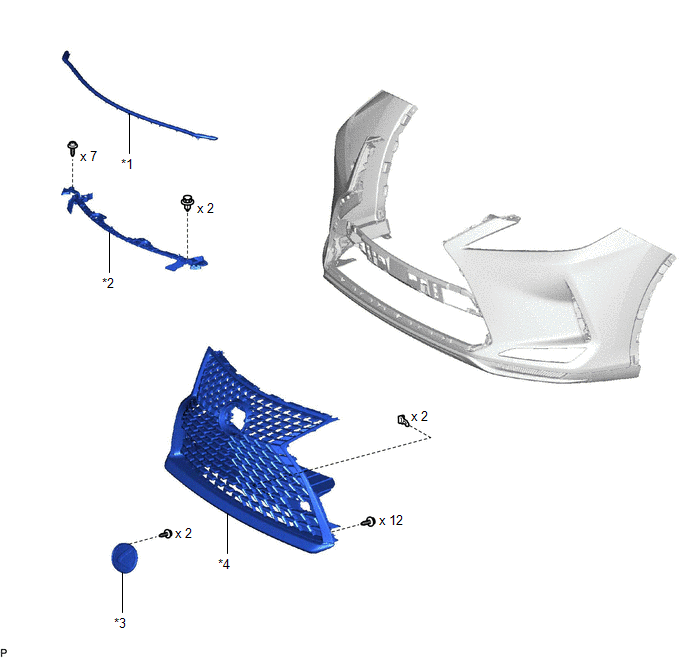

Fig 6: Front Bumper Replacement Components (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HOOD TO RADIATOR GRILLE SEAL	*2	INNER RADIATOR GRILLE
*3	RADIATOR GRILLE (OR FRONT PANEL) EMBLEM	*4	RADIATOR GRILLE SUB-ASSEMBLY

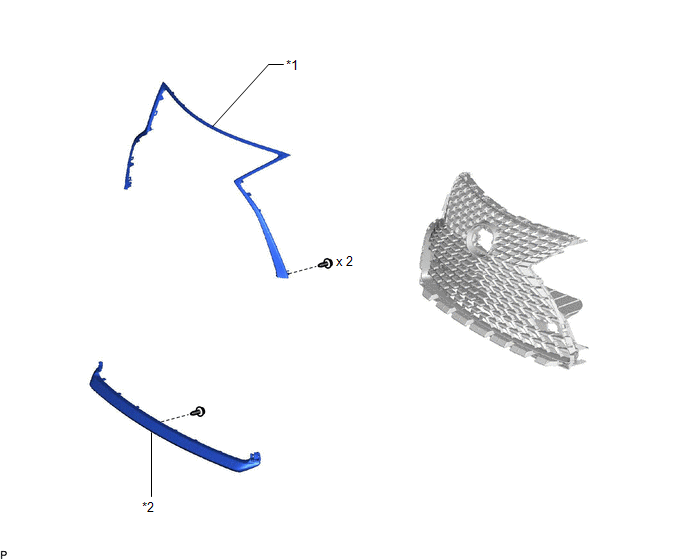

Fig 7: Front Bumper Replacement Components (7 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NO. 1 RADIATOR GRILLE MOULDING

NO. 2 RADIATOR GRILLE MOULDING

Fig 8: Front Bumper Replacement Components (8 Of 10)

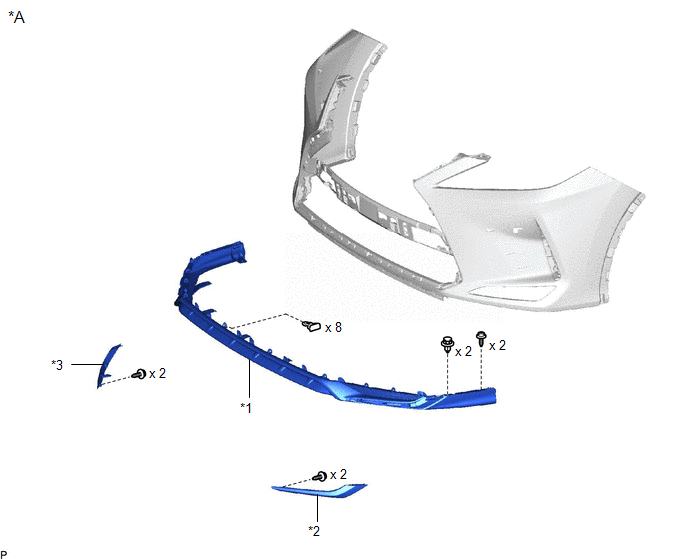

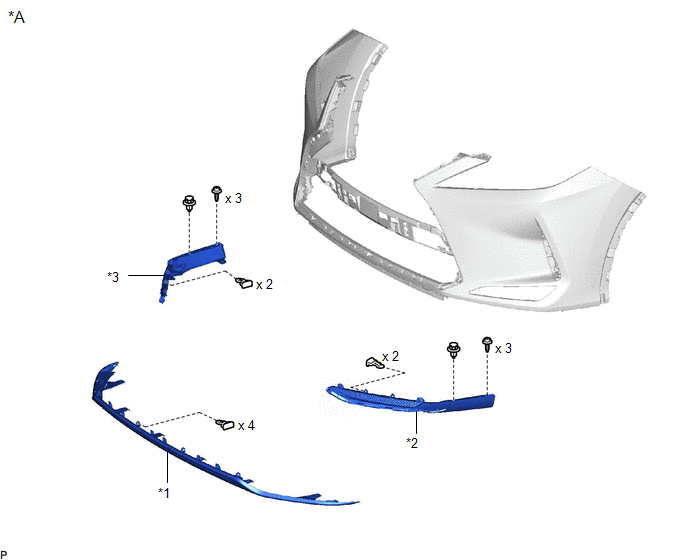

Fig 9: Front Bumper Replacement Components (9 Of 10)

*A	for F-Sport	-	-
*1	FRONT BUMPER EXTENSION SUB-ASSEMBLY	*2	FRONT BUMPER SIDE MOULDING LH
*3	FRONT BUMPER SIDE MOULDING RH	-	-

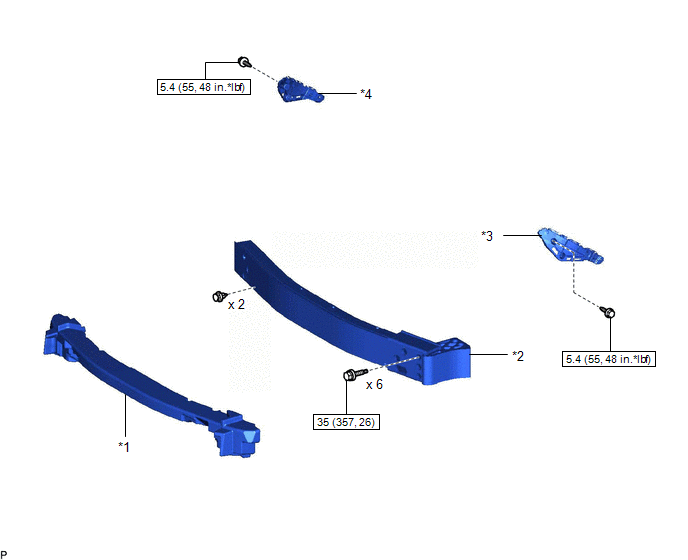

Fig 10: Front Bumper Replacement Components With Torque Specifications (10 Of 10)

Callout	Description	Callout	Description
*1	FRONT BUMPER ENERGY ABSORBER	*2	FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
*3	FRONT BUMPER SIDE RETAINER LH	*4	FRONT BUMPER SIDE RETAINER RH
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
